SPECIFICATIONS

CAPACITY
SWING OVER BED & CARRIAGE WINGS: 19-1/4″
SWING OVER CROSS SLIDE: 12-1/4″
DISTANCE BETWEEN CENTERS: 96″

HEADSTOCK
SPINDLE SPEEDS, NUMBER: 12
SPINDLE SPEED RANGE, LOW: 25 – 1,000 RPM
SPINDLE SPEED RANGE, HIGH: 38 – 1,500 RPM

BED
LENGTH: 120”
WIDTH: 14-3/8”
DEPTH: 11-1/2”

CARRIAGE
CROSS SLIDE TRAVEL WITHOUT TAPER ATTACHMENT: 11-1/4”
CROSS SLIDE TRAVEL WITH TAPER ATTACHMENT: 9-5/8”
COMPOUND REST TRAVEL: 4-3/8”

FEEDS – THREADS
FEED CHANGES: 48
FEED RANGE: .0018 – .104 IPR
THREAD CHANGES: 48
THREAD RANGE: 2 – 112 TPI
LEADSCREW DIAMETER AND THREAD PER INCH: 1-3/16”, 4

TAILSTOCK
SPINDLE DIAMETER: 2-7/16″
CENTER, MORSE: # 4
SPINDLE TRAVEL & SET OVER RIGHT OR LEFT: 7″, 1″

GENERAL
DIMENSIONS: 13’ L-R X 3’6” F-B X 4’5” H
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
12″ 3-JAW CHUCK
STEADY REST
TRAV-A-DIAL

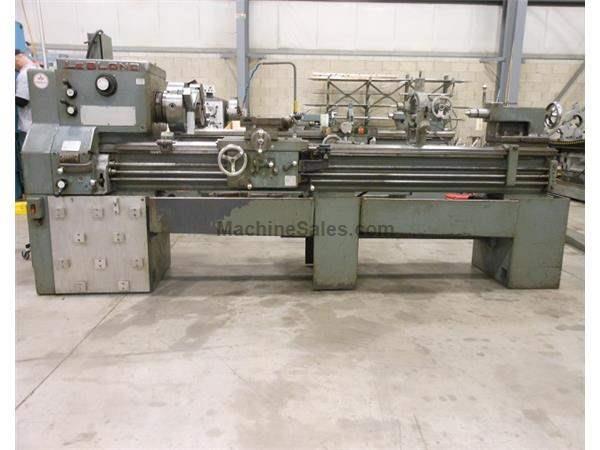

This machine is listed for sale by located in Bethlehem, Pennsylvania
