JET J-2500 Floor Model Drill Press 115V 1Ph - $RFQ

Item Number: #00076574

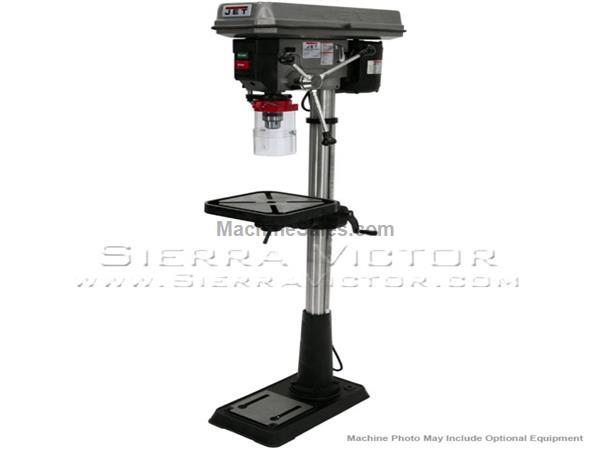

JET J-2500 Floor Model Drill Press 115V 1Ph

JET J-2500 Floor Model Drill Press 115V 1Ph
Stock Code:  354400
Price: $RFQ

Drilling & Tapping Machines

Manufacturer:  Jet
Model:  J-2500
Condition: New


Cast iron head
Large quill allows greater accuracy
Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an enclosed quill for longer life.
Table tilts 45°
Large ground steel column diameter for maximum head and table support
Hinged metal belt and pulley cover
Accurate depth stop displays inch/mm and has a quick set bolt fast
Massive T-slotted production work table (Model J-2550 only)

5/8" Drill chuck and arbor
Spindle guard

Type: 15" Floor
Drills to Center of Circle (in): 15
Drilling Capacity Cast Iron (in.): 5/8
Drilling Capacity Mild Steel (in.): 1/2
Quill Diameter (in.): 1-7/8
Quill Travel (in.): 3-3/8
Spindle Taper: MT-2
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1440, 1630, 1820, 2380, 2540, 3630
Overall Table Size (in.): 11-1/2 x 11-1/2
Column Diameter (in.): 2-7/8
Base Size (in.): 11 x 19-1/2
Spindle to Base (in.): 48
Motor: 3/4 HP, 115V, 1 Ph
Overall Dimensions (in.): 31 x 13 x 63
Weight (lbs.): 167

561702: TDC-375, Taper Mount Drill Chuck 0-3/8" x JT-2
561704: TDC-500, Taper Mount Drill Chuck 0-1/2" x JT-6
561706: TDC-501, Taper Mount Drill Chuck 0-1/2" x JT-33
561708: TDC-625, Taper Mount Drill Chuck 1/8"-5/8" x JT-3
561709: TDC-750, Taper Mount Drill Chuck 1/8"-3/4" x JT-4

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – Limited
