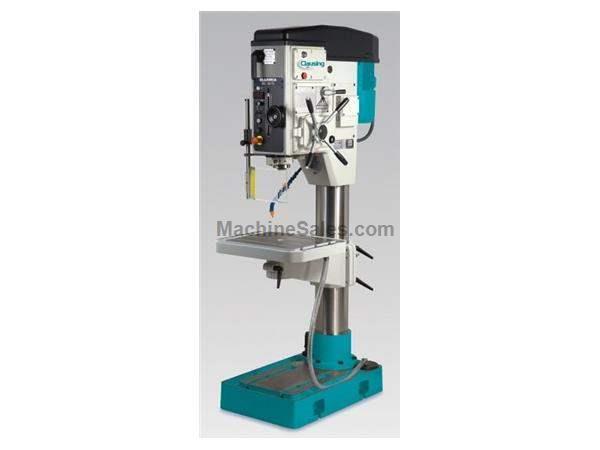

29" Swing 5.5HP Spindle Clausing BC50VE DRILL PRESS
NEW CLAUSING/IBARMIA GEARED-DRIVE ROUND-COLUMN DRILL
29" GEARED-HEAD w/ELECTRONIC VARIABLE SPEED, ELECTRICAL CLUTCH, FLOOR
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
Spindle taper: 4MT
Quill diameter: 3.46"
Spindle travel (drilling depth): 7.87"
Main motor power: 5.5 HP
Coolant pump motor power: .1 HP
Number of variable speed ranges and type: 3 electronic
Low range (rpm): 30-230
Med range (rpm): 90-730
High range (rpm): 190-1500
Number of automatic feeds: 4
Auto feed range: in/rev. .0039/.0079/.0118/.0157
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1.97"
-Maximum drilling capacity in cast iron: 2.36"
-Maximum tapping capacity in steel: 1.65"
-Maximum tapping capacity in cast iron: 1.97"
-Automatic feed reversing system for tapping
-Automatic feed and cut-off by electromagnetic clutch
-Hardened and ground high quality steel gears
-Speed plate and selecting levers on front of head
-Gear box lubrication by automatic pump
-Machine base with 2 T-slots, coolant tank and pump
-Large worktable with 3 T-slots
-Feed crank wheel for manual feed
-Front hand wheel for fine feed work
-Depth scale and adjustable depth stop
-Automatic tool ejector
-Built-in low voltage electrical equipment in machine head
-Drill guard with microswitch
Base: length x width: 33.9" x 21.7"
Base to spindle: 49"
Spindle center to column: 14.56"
Spindle to Table:
Worktable: length x width: 20.5" x 24.4"
Base height: 5.71"
Column diameter: 7.87"
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 19.6" x 9.8"
-Cross Table 27.5" x 9.8"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-50% Lower Feed Range*
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
FOR MORE INFORMATION: Call Terry at 973-497-7612
This machine is listed for sale by Machinery Values Inc.
located in Harrison, New Jersey
