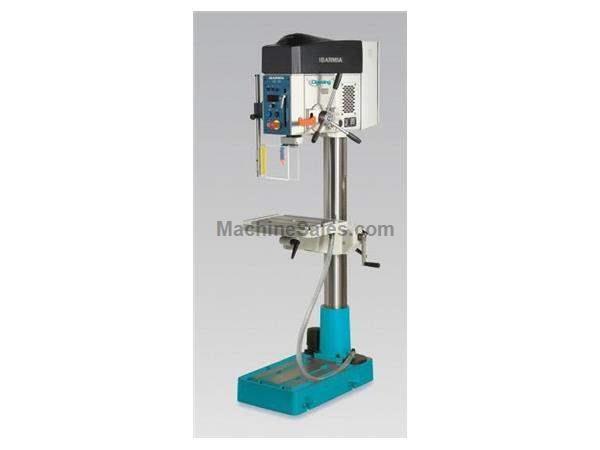

27.5" Swing 4HP Spindle Clausing SZ40 DRILL PRESS
NEW CLAUSING/IBARMIA BELT-DRIVE ROUND-COLUMN DRILL
27.5" ELECTRONIC VARIABLE SPEED, MANUAL FEED, FLOOR
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
Spindle taper: 3MT
Quill diameter: 2.95"
Spindle travel (drilling depth): 7.09"
Main motor power: 4 HP
Coolant pump motor power: .1 HP
Spindle speeds (electronic variable speed) 100-2000 rpm
Number of automatic feeds: 3
Auto feed range: in./rev. .0039/.0079/.0118
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1.57"
-Maximum drilling capacity in cast iron: 1.77"
-Maximum tapping capacity in steel: 1.30"
-Maximum tapping capacity in cast iron: 1.54"
-Automatic feed reversing system for tapping
-Digital RPM Counter
-Machine base with 2 T-slots, coolant tank and pump
-Large worktable with 3 T-slots
-Feed crank wheel for manual feed
-Depth scale and adjustable depth stop
-Automatic tool ejector
-Spindle reversing switch
-Built-in low voltage electrical equipment in machine head
-Drill guard with microswitch
Base: length x width: 31.5" x 18.8"
Base to spindle: 48.4"
Spindle center to column: 13.78"
Spindle to Table:
Worktable: length x width: 18.9" x 22.05"
Base height: 4.72"
Column diameter: 5.91"
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 11" x 7"
-Cross Table 15" x 8.7"
-Cross Table 19.6" x 9.8"
-Cross Table 27.5" x 9.8"
-Pneumatic Counter Balance*
-7.8" Column Riser*
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Union for Multi-Spindle Head*
-Motor, 1800/3600 RPM*
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
FOR MORE INFORMATION: Call Terry at 973-497-7612
This machine is listed for sale by Machinery Values Inc.
located in Harrison, New Jersey
