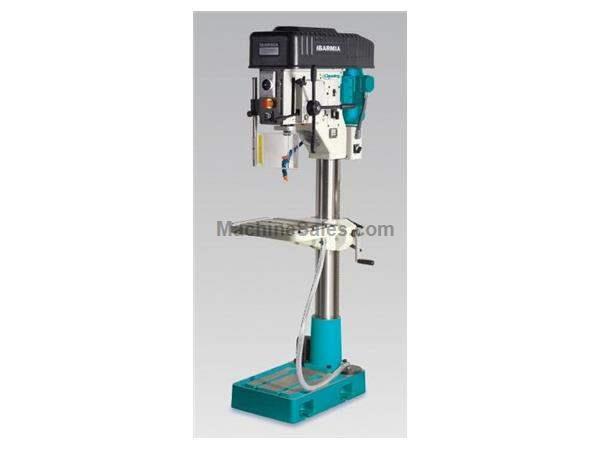

23.6" Swing 1.8HP Spindle Clausing SZ32 DRILL PRESS
NEW CLAUSING/IBARMIA BELT-DRIVE ROUND-COLUMN DRILL
23.6" STEP PULLEY, MANUAL FEED, FLOOR
Spindle taper: 3MT
Quill diameter: 2.56"
Spindle travel (drilling depth): 5.91"
Main motor power: 1.2/1.8 HP
Coolant pump motor power: .1 HP
Number of speeds: 10
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1.26"
-Maximum drilling capacity in cast iron: 1.38"
-Maximum tapping capacity in steel: .87"
-Maximum tapping capacity in cast iron: 1.18"
-Machine base with 2 T-slots, coolant tank and pump
-Large worktable with 3 T-slots
-Feed crank wheel for manual feed
-Depth scale and adjustable depth stop
-Automatic tool ejector
-Spindle reversing switch
-Built-in low voltage electrical equipment in machine head
-Drill guard with microswitch
Base: length x width: 26.8" x 16.5"
Base to spindle: 50.59"
Spindle center to column: 11.81"
Spindle to Table:
Worktable: length x width: 15.75" x 18.9"
Base height: 4.72"
Column diameter: 4.92"
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 11" x 7"
-Cross Table 15" x 8.7"
-Cross Table 15.7" x 7"
-Cross Table 19.6" x 9.8"
-Reversible Rotating, Tiltable Table*
-Pneumatic Counter Balance*
-7.8" Column Riser*
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Rotating and Tilting Table*
-Digital RPM Counter*
-Union for Multi-Spindle Head*
-Motor, 1800/3600 RPM*
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
FOR MORE INFORMATION: Call Terry at 973-497-7612
