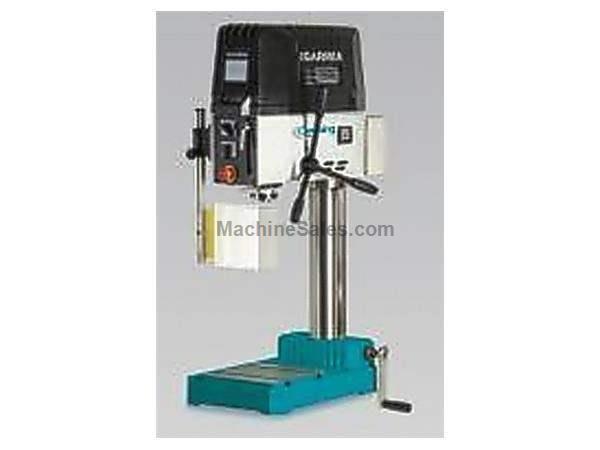

19" Swing 0HP Spindle Clausing KM18 DRILL PRESS
NEW CLAUSING/IBARMIA BELT-DRIVE ROUND-COLUMN DRILL
19.7" STEP PULLEY, MANUAL FEED, BENCH/TABLE
Spindle taper: 3MT
Quill diameter: 2.44"
Spindle travel (drilling depth): 4.72"
Main motor power: .5/.75 HP
Number of speeds: 10
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: .71"
-Maximum drilling capacity in cast iron: 1"
-Maximum tapping capacity in steel: .55"
-Maximum tapping capacity in cast iron: .71"
-Depth scale and adjustable depth stop
-Spindle reversing switch
-Automatic tool ejector
-High/low speed range selector
-Drill guard with microswitch
Height w/optional cabinet: 74.4"
Base: length x width: 22" x 15"
Base to spindle: 20.9"
Spindle center to column: 9.84"
Spindle to Table:
Worktable: length x width: 10.6" x 11.8"
Base height: 3.1"
Column diameter: 3.94"
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 8.6" x 5.5"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Floor Cabinet w/Shelves*
-Floor Cabinet w/Drawer*
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
FOR MORE INFORMATION: Call Terry at 973-497-7612
This machine is listed for sale by Machinery Values Inc.
located in Harrison, New Jersey
