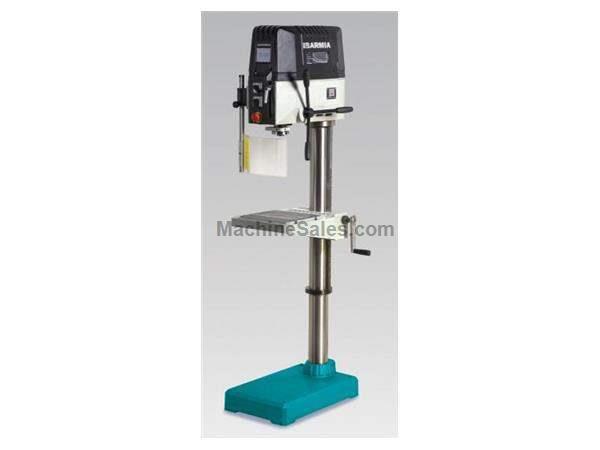

19" Swing 1HP Spindle Clausing KL25EV DRILL PRESS |
|
Stock Code: |
148343 |
Price: | $RFQ |
Subcategory: | Drill Presses |
Manufacturer: |
Clausing |
Model: |
KL25EV |
Condition: | Used |
NEW CLAUSING/IBARMIA BELT-DRIVE ROUND-COLUMN DRILL
19.7" ELECTRONIC VARIABLE SPEED, FLOOR
MODEL: KL25EV
SPECIFICATIONS:
Spindle taper: 3MT
Quill diameter: 2.44"
Spindle travel (drilling depth): 4.72"
Main motor power: 1.5 HP
Number of speeds: 10
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1"
-Maximum drilling capacity in cast iron: 1.18"
-Maximum tapping capacity in steel: .71"
-Maximum tapping capacity in cast iron: .87"
-"EV" models are equipped with electronic variable speed
-Depth scale and adjustable depth stop
-Thermomagnetic switch
-Spindle reversing switch
-Automatic tool ejector
-Emergency STOP
-High/low speed range selector
-Drill guard with microswitch
Note: KL25EV take a 1 speed motor of 1.5 HP and variable speed range 300-4800 rpm.
DIMENSIONS:
Height: 70"
Base: length x width: 24" x 15"
Base to spindle: 47.6"
Spindle center to column: 9.84"
Spindle to Table:
Minimum: 4.13"
Maximum: 25.2"
Worktable: length x width: 10.6" x 11.8"
Base height: 3.7"
Column diameter: 3.94"
OPTIONAL EQUIPMENT (CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 8.6" x 5.5"
-Cross Table 13.8" x 10.8"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Rotating Table*
-Reversible Tiltable Table*
*Factory Installed
WARRANTY:
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
