8" Swing 14" Centers Brown Sharpe 814U VALUEMASTER, I.D. ATTACH., POWER TABLE, OD GRINDER, ACCESSORIES |
|
| Stock Code: |
173483 |
| Price: | $RFQ |
| Subcategory: | Cylindrical Universal Grinders |
| Year of Manufacture: |
1975 |
| Manufacturer: |
Brown & Sharpe |
| Model: |
814U VALUEMASTER, I.D. AT |
| Condition: | Used |

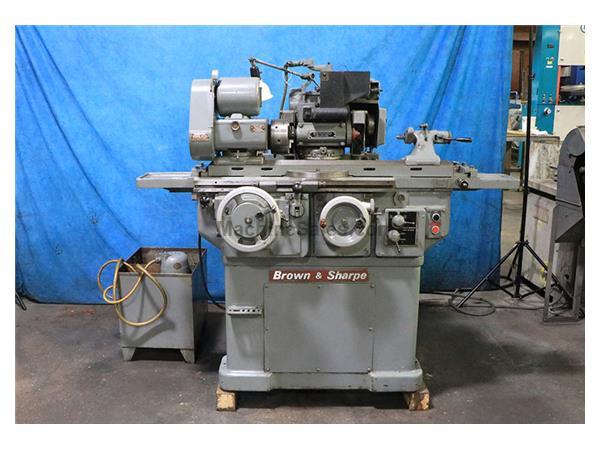

BROWN & SHARPE "PRECISION"
MODEL #814U VALUEMASTER
UNIVERSAL O.D./I.D. CYLINDRICAL GRINDER
WITH MANY ACCESSORIES (SEE DESCRIPTION BELOW)
S/N: 525-8144-2304 NEW: 1975
CAPACITY:
- GRINDS WORK UP TO .................. 8" DIAMETER
- GRINDS LENGTH ...................... 14"
- DISTANCE BETWEEN CENTERS ........... 24"
WHEELHEAD:
- GRINDING WHEEL SIZE ......... 10", 7" OR 5" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT .... 110°
SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT .... 90°
- FINE SCREW ADJ. FOR SETTING TAPERS
UP TO ............................ 3" PER FT.
- TABLE TRAVEL ....................... 22"
- TRAVEL PER REV. OF HANDWHEEL ....... 1/4" SLOW
6-1/4" FAST
HEADSTOCK:
- SWIVELS LEFT & RIGHT ............... 100°
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM
- APPROX. FLOOR SPACE ............... 68" x 55" x 65"H
- APPROX. WEIGHT ..................... 2,900 LBS.
MACHINE STANDARD FEATURES:
HAS ADDITIONAL TABLE SWIVEL FEATURE, FROM THE CENTER,
FOR LARGE ADJUSTMENT OF 90°
DOUBLE ENDED WHEEL SPINDLE, LEFT & RIGHT
PRESENTLY SET-UP WITH 10" O.D. GRINDING WHEEL
MACHINE CAN BE USED WITH 10", 7" OR 5" DIA. WHEELS
DUAL LIVE/DEAD HEADSTOCK SPINDLE
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
TABLE MOUNTED WHEEL DRESSER
COOLANT PUMP & PIPING
1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR
EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
POWER TABLE TRAVERSE (OPTION)
R.H. & L.H. WHEEL GUARDS
TABLE MOUNTED WHEEL DRESSER
COOLANT PUMP & PIPING
3-JAW CHUCK
FACE PLATE
COLLET ATTACHMENT
COLLETS
CENTERS
LIVE & DEAD WORKHEAD SPINDLE SET-UPS
3-POINT STEADY REST
CABINET
WORK LIGHT
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS/3/60, 6 FLA
LINK TO VIDEO: href="https://youtu.be/XCWQfPw8fSo?si=KrFjV5A02QdHQKHh">https://youtu.be/XCWQfPw8fSo?si=KrFjV5A02QdHQKHh
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
This machine is listed for sale by Machinery Values Inc.
located in Harrison, New Jersey
