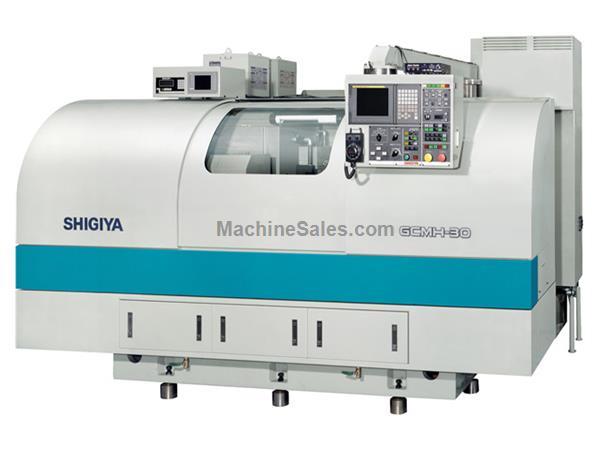

NEW SHIGIYA GCMH-30 CNC MASTERLESS CAM GRINDER |
|
| Stock Code: |
14787 |
| Price: | $RFQ |
| Subcategory: | Cylindrical Grinders CNC |
| Manufacturer: |
Shigiya |
| Model: |
GCMH-30 |
| Condition: | New |
<html><body><strong>NEW SHIGIYA GCMH-30 CNC MASTERLESS CAM GRINDER</strong><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;"><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">
<p style="margin: 0px; padding: 0px 10px 0px 0px; border: 0px; outline: 0px; font-size: 14px; font-family: Arial, Helvetica, sans-serif; vertical-align: baseline; line-height: 20px; background-color: #f5f5f5;"><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;"></span></p>
<span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;"><br/>
<span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;"></span></span><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">The GCMH-30 , featuring Shigiya's conversational cam and journal automatic programming system, is the leading CNC masterless cam shaft grinder for unsurpassed quality and throughput. The highly productive machine grinds cam profiles directly from computer-generated design data. It produces straight cams with accurate profiles much quicker and eliminates human error from the grinding process.</span><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">
<div><br/>
</div>
</span>
</span><br/>
</span>
<br/>
<br/>
<br/>
<table>
<tbody>
<tr>
<td>Swing Over Table </td>
<td>11.81"</td>
</tr>
<tr>
<td>Distance Between Centers </td>
<td>9.84" / 24.81"</td>
</tr>
<tr>
<td>Weight Capacity</td>
<td>330 Lbs</td>
</tr>
<tr>
<td>Wheel Head Travel</td>
<td>7.87"</td>
</tr>
<tr>
<td>Wheel Size OD</td>
<td>13.78"</td>
</tr>
<tr>
<td>Wheel Size </td>
<td>13.78" x .98" x 5"</td>
</tr>
<tr>
<td>Wheel Spindle</td>
<td>29 HP</td>
</tr>
<tr>
<td>Machine Weight</td>
<td>12125 Lbs / 15432 Lbs</td>
</tr>
</tbody>
</table>
<br/>
<br/>
<br/>
<div id="radePasteHelper" style="position: absolute; left: -10000px; border: 0px solid red; top: 0px; width: 1px; height: 1px; overflow: hidden;"><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">Standard size conventional type precision cylindrical grinder</span><br/>
</div>
<div id="radePasteHelper" style="position: absolute; left: -10000px; border: 0px solid red; top: 0px; width: 1px; height: 1px; overflow: hidden;"><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">Standard size conventional type precision cylindrical grinder</span><br/>
</div>
<div id="radePasteHelper" style="position: absolute; left: -10000px; border: 0px solid red; top: 0px; width: 1px; height: 1px; overflow: hidden;"><span style="font-size: 14px; background-color: #f5f5f5; font-family: Arial, Helvetica, sans-serif;">Standard size conventional type precision cylindrical grinder</span><br/>
</div></body></html>
This machine is listed for sale by Blumberg Machinery
located in Bannockburn, Illinois
