2016 FARO VANTAGE LASER TRACKER PORTABLE COORDINATE MEASURING MACHINE - $RFQ

Item Number: #00149572

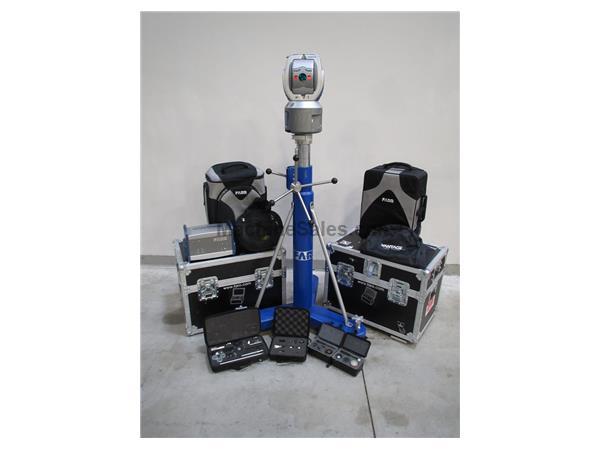

2016 FARO VANTAGE LASER TRACKER PORTABLE COORDINATE MEASURING MACHINE

2016 FARO VANTAGE LASER TRACKER PORTABLE COORDINATE MEASURING MACHINE
Stock Code:  TK-21194#
Price: $RFQ
Subcategory:

Coordinate Measuring Machines

X axis measuring range2360"
Year of Manufacture:  2016
Manufacturer:  Faro
Model:  VANTAGE
Condition: Used

SPECIFICATIONS
DIMENSIONS
HEAD SIZE: 8.8” W X 16.4” H
HEAD WEIGHT: 28 LBS
CONTROLLER SIZE (WITH FILTERS): 12.4” L X 6.2” D X 8.4” H
CONTROLLER SIZE (WITHOUT FILTERS): 11.4” L X 6.2” D X 8.4” H
RANGE
262.5’ MAXIMUM WORKING RANGE: WITH SELECT TARGETS (50° TO 95°F):
196.9’ STANDARD WORKING RANGE: WITH 1.5” & 7/8” SMRS
98.4’ STANDARD WORKING RANGE: WITH 1/2” SMR
HORIZONTAL ENVELOPE (INFINITE ROTATION): 360°
VERTICAL ENVELOPE (INFINITE ROTATION): 130° - (+77.9° TO -52.1°)
ENVIRONMENTAL
ALTITUDE: -2,297 TO 29,527’
HUMIDITY: 0 TO 95% NON-CONDENSING
OPERATING TEMPERATURE: 5° TO 122°F
LASER EMISSION
632 – 663 NM LASER (CLASS II LASER): 1 MILLI-WATT MAX/CW
CAMERAS
FLIED OF VIEW: 30°
SINGLE POINT REPEATABILITY
25 POINTS @ 5.2’: 0.0003”
HOW IT WORKS
The Laser Tracker measures two angles and a distance. First, the tracker sends a laser beam to a reflective target held against the object being measured. Light is then reflected off the target and retraces its path, re-entering the Tracker at the same position it left. As light re-enters the Tracker, two angle encoders measure the elevation and rotational angles while a highly accurate absolute distance meter is used to determine the 3D position of the retroreflector.
FEATURES
• COMPACT SIZE
• WATER & DUST RESISTANT
• CARRYING CASES
• SMARTFIND – LOCATES & LOCKS ON TO CORRECT TARGET
• MULTIVIEW CAMERAS
• TRU-ADM
• INTEGRATED WI-FI®
• QUICK COMP – OPTIMIZES MEASUREMENTS
• TRI-MAP ENCODERS – THREE READ HEAD SYSTEM THAT IS SELF MAPPING
• IN-LINE OPTICS
EQUIPPED WITH
TARGET TOOLING KIT WITH SOFT CASE
UNIVERSAL TRAK ARM KIT WITH SOFT CASE
SMR TARGETS WITH SOFT CASES
