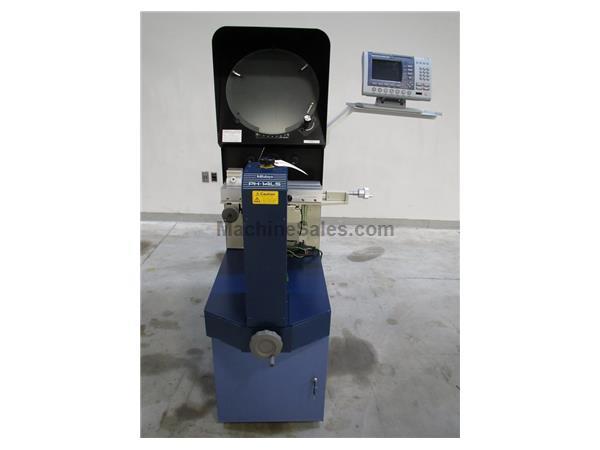

MITUTOYO MODEL PH-14LS HORIZONTAL OPTICAL COMPARATOR, 14" - $RFQ

Item Number: #00144800
MITUTOYO MODEL PH-14LS HORIZONTAL OPTICAL COMPARATOR, 14&quot;

MITUTOYO MODEL PH-14LS HORIZONTAL OPTICAL COMPARATOR, 14"
Stock Code:  GP-21088
Price: $RFQ
Subcategory:

Comparators

Screen diameter14"
Manufacturer:  Mitutoyo
Model:  PH-14LS
Condition: Used

PROTRACTOR SCREEN
DIAMETER: 14"
MATERIAL: FINE GROUND GLASS WITH CROSS-HAIR LINES
ANGLE: VERNIER READING, RESOLUTION 2'

ILLUMINATION
CONTOUR: 24V, 150W (512305) HALOGEN LAMP TELECENTRIC ILLUMINATION
SURFACE: 24V, 150W (512305) HALOGEN LAMP,
TWIN FIBER-OPTIC ILLUMINATOR

MAGNIFICATIONS: 10X, 20X

MAGNIFICATIONS ACCURACY
CONTOUR: 0.1% OR LESS
SURFACE: 0.15% OR LESS

WORK STAGE (X-AXIS)
TABLE TRAVEL: 8"
TABLE SIZE: 16" X 6"
READING UNIT: LINEAR SCALE
RESOLUTION: 0.00005"

WORK STAGE (Y-AXIS)
TABLE TRAVEL: 4"
READING UNIT: LINEAR SCALE
RESOLUTION: 0.00005"

Z-AXIS
FOCUSING TRAVEL: 2"

GENERAL
DIMENSIONS: 28” LR X 60” FB X 48” H
WEIGHT: 335 LBS
MAX LOAD: 100 LBS
ELECTRICS: 120 VOLTS, 1 PH, 60 CYC

EQUIPPED WITH

QUADRA CHECK 200 DIGITAL READOUT SYSTEM
10X & 20X LENSES
BASE
