Recently Rebuilt by Amada – Production Ready

This 2011 Amada CMB-100CNC has just been professionally rebuilt by Amada and is fully ready for tight-tolerance, high-production cutting applications.

Recent rebuild work includes:

New ball screw

New servo motor

New saw blade

New guide blades

New position sensors

New front vise

Hydraulic fluid change

New thrust bearings

This machine is clean, precise, and ready to go directly into production.

Overview

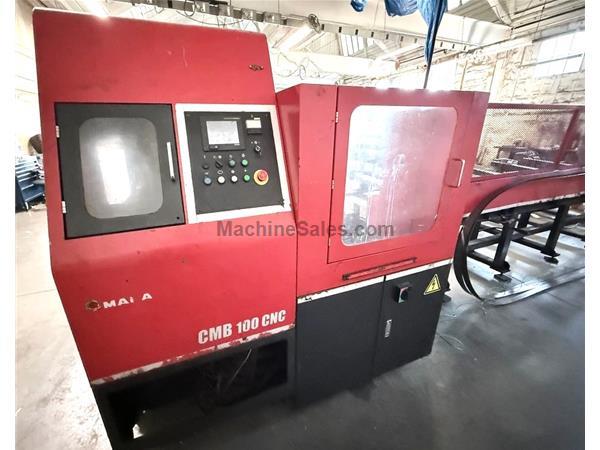

The Amada CMB-100CNC is a high-precision automatic circular cold saw designed for cutting round and square metal stock with exceptional repeatability. Equipped with CNC control, inverter-driven variable speed, and automatic servo feed, this model is ideal for high-volume environments demanding accuracy and consistency.


Blade

Diameter: 360 mm (14.17")

Bore: 40 mm

Thickness: 2.6 mm

Motor

11 kW (15 HP) saw motor

Blade Speed

Inverter-controlled

Adjustable from 56 – 210 m/min
(Some models rated 50 – 250 RPM equivalent)

Control

Amada CNC control for programmable cutting cycles

Cutting Capacity

Round: Up to 100 mm (3.94")

Square: Up to 75 x 75 mm (2.95" x 2.95")

Feed System

Automatic servo-controlled material feed

Features

Automatic head sorting (trim/remnant handling)

Minimal lubrication (micromist system)

Inclined automatic bar loader option

High repeatability for tight tolerances

Power

11 kW / 15 HP

Ideal Applications

High-volume production cutting

Tight tolerance metal stock preparation

CNC-driven batch production

Fabrication and machining support operations

Disclaimer

Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.

This machine is listed for sale by Bridgeline Machinery Corp. located in Deerfield, Illinois
