14" Blade Dia 3.5hp HP Dake Super Technics 350SA Semi-Auto *Made in Italy* COLD SAW, 220V/440V 3ph; push button or ft switch activation - $RFQ

Item Number: #00080475
14&quot; Blade Dia 3.5hp HP Dake Super Technics 350SA Semi-Auto *Made in Italy* COLD SAW, 220V/440V 3ph; push button or ft switch activation

14" Blade Dia 3.5hp HP Dake Super Technics 350SA Semi-Auto *Made in Italy* COLD SAW, 220V/440V 3ph; push button or ft switch activation
Stock Code:  153330
Price: $RFQ
Subcategory:

Cold & Carbide Saws - Metal

Manufacturer:  Dake
Model:  SUPER TECHNICS 350SA SEMI
Condition: Used

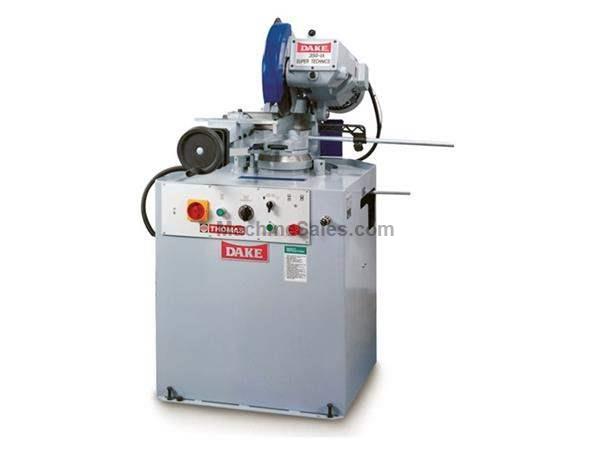

DAKE SUPER TECHNICS 350SA


SEMI-AUTO COLD SAW





*MADE IN ITALY*





The Dake Super Technics 350 Semi-Automatic Cold Saw is a cast iron cold saw that has a head that can rotate 45 degrees right and 60 degrees left for miter cuts. Industry leading dependability is achieved using an oversized spindle that features a splined steel shaft and heavy duty bronze gear that is supported with tapered roller bearings.





Push button, or foot switch saw head activation is used to avoid operator fatigue. Stroke distance is controlled by the shrouded feed cylinder. Clamping and un-clamping of the material is sped up by the adjustable pneumatic vise, which features a sliding gib. A mechanical coolant pump with flow control adjustment and a rugged fabricated steel base are also standard.





FEATURES


Push button or foot switch activation to avoid operator fatigue.


Shroud enclosed feed cylinder with sliding cams for fast cutting stroke adjustment.


Additional ball bearing support of hardened and ground spindle shaft to prevent failure.


Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke.


Adjustable clutch for more efficient operation and longer blade life.


Oversized pedestal base to reduce vibration.


Head rotates 45° right and 60° left of center for easy miter cutting.


Bronze worm gear with tapered roller bearing support.


Removable hardened, serrated vise jaw faces.





STANDARD EQUIPMENT


Blade


Adjustable positive stop


Instruction and service manual


Gallon of coolant


Tool kit for changing blades


Saw blade selector calculator





SPECIFICATIONS


Maximum blade diameter ............................ 14


Motor horsepower .................................. 3.5


Voltage ........................................... 220/440


Phase ............................................. 3


Speeds ............................................ 20-105


Weight ............................................ 890


Solid round 90˚ capacity (inches) ................. 3-3/8


Solid round 45˚ capacity (inches) ................. 3


Tube 90˚ capacity (inches) ........................ 4-3/4


Tube 45˚ capacity (inches) ........................ 4


Square 90˚ capacity (inches) ...................... 4-1/8


Square 45˚ capacity (inches) ...................... 3-3/8


Rectangle 90˚ capacity (inches) ................... 6-1/4 x 3-1/2


Rectangle 45˚ capacity (inches) ................... 3-3/8 x 2-3/4





*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.


FOR MORE INFORMATION: Call Terry at 973-497-7612
