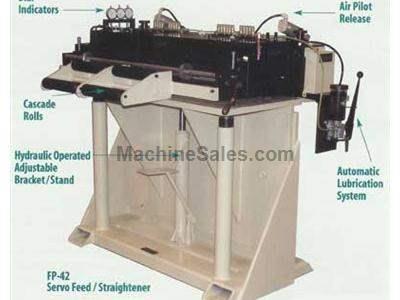

Electronic Servo Feed with Pull Thru Straightener
Model Max. Max.
Width (mild steel)
FP-3/SS 3" .210"
FP-6/SS 6" .181"
FP-12/SS 12" .156"
FP-18/SS 18" .125"
FP-24/SS 24" .125"
FP-30/SS 30" .090"
FP-36/SS 36" .090"
Installation is a snap with a Durant servo feed - stock straightener combo. The MP and VP Series includes an adjustable mounting bracket as standard. Only four bolts are necessary for quick easy installation. The FP and HP Series allows for the heavy duty adjustable mounting bracket as an optional item. We recommend this item to make your installation and operation a smooth, trouble-free experience. Every model is engineered and machined from the latest CNC Technology and black oxide finished to give out customers the premier Electronic Servo Feed.
• Operator control: Power On/Off selector switch, Emergency Stop push-pull button, Index push button, Auto/Manual/Jog to Length selector switch & remote forward / reverse jog station.
• Operator interface keypad and display.
• Electronic Control is wired to JIC and NEC standards.
• Air Pilot Release
• Mechanical Pilot Release
This machine is listed for sale by American Machine Tools Company
located in Chicago, Illinois
