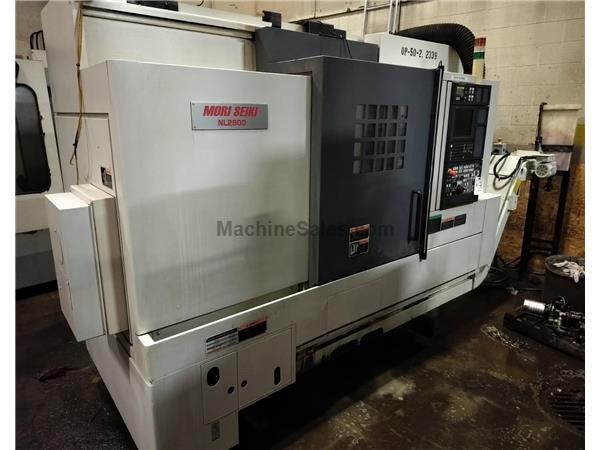

MORI SEIKI NL2500MC/700 Multi-Axis Turning
NEW IN: 2009
SN 251II5109
Description: Mori Seiki NL2500MC/700 CNC Lathe, MSX850 Control, , 36" Swing, 3.1" Bar Capacity, Live Milling, 12 Position Turret, Tool Presetter, Tooling Incl.
Type of CNC Control: MSX 850
# Axis: 3
Chuck Size: 10 inches
Swing: 36.4 inches
Turning Diameter: 14 inches
Center Distance: 31 inches
Bar Capacity: 3.1 inches
Spindle Bore: 3.6 inches
X Axis Travel: 10.2 inches
Z Axis Travel: 31 inches
Y Axis (Yes / No): no
X Axis Rapid Feedrate: 1181 inches-per-minute
Z Axis Rapid Feedrate: 1181 inches-per-minute
Spindle Speed (RPM): 4000
Main Motor: 30 Horsepower
Live Milling (Yes)
Live Milling Speed (RPM): 6000
Live Milling Motor: 7.5
Turret Capacity: 12
Tailstock (Yes)
Weight: 12800 pounds

Misc ID/OD Toolholders
(2) Live Holders
Tool Pre-setter
Foot Pedal
Coolant Tank & Pump
Chip Conveyor

This machine is listed for sale by Industrial Machinery And Rigging located in Livonia, Michigan
