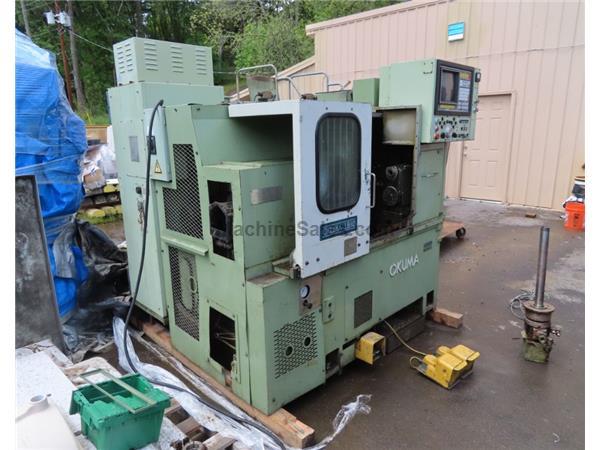

Okuma CNC Lathe
Manufacturer: Okuma Machinery Works Ltd. (Nagoya, Japan)
Make: LB10 / Serial No.: 1642
Electrics: 220-440 Volt / 3 Phase / 60 Cycle / 39-19 Amp
Power Main Spindle: 10 HP

Features and Specifications:
…Controlled Axes: 2
…Swing Over Bed: 10″
…Distance Between Centers: 9.84″
…CNC Control: OSP5000L (Okuma)
…Spindle Speed (max): 6,000 RPM
…Spindle Bore: 1.75″
…Travels:
……X-Axis (Cross Slide): 5.91″
……Z-Axis (Carriage): 11.22″
…Cutting Feed Rate (X,Z): .0001 – 40.000 IPR
…Rapid Traverse (X,Z): 472 IPM
…12-Position Turret
…3-Pedal Actuation
…Hydraulic Tailstock & Chuck
…(2) 6.75″ Kitagawa Hydraulic Chucks
……Model: HOH-07K
…Coolant System
…Lubricated Guideways
…Misc. Tooling Holders
……See pics in both turret and separate

Specifications taken from 1st-hand inspection and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Overall Equipment Dimensions (as measured): 80″ x 72″ x 76″
Overall Equipment Weight (approx.): 7,500 lbs.

Functionality Notes:

Seller purchased from JG Murphy auction; unit was taken directly from previous owner. To the best of our knowledge, machine is a good runner w/ no negative mechanical, electrical or hydraulic issues.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Salem, OR

Equipment is presently not under power; available for inspection.
Can be put under power for serious inquiry.
Seller agrees to load unit onto Buyer’s transportation.
Buyer responsible for freight logistics and expenses.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.

This machine is listed for sale by MD Equipment Services LLC located in Terrebonne, Oregon
