TRAVELS:
-X AXIS: XA: 25.98" / XB: 9.05"
-Z AXIS: ZA: 87.2" / ZB: 82.68"
-Y AXIS: +4.921" TO -4.921"

SWING OVER BED 28.3"
MAX TURNING DIA. 28.3"
C-AXIS CONTROL ANGLE: 360 (MIN. CONTROL ANGLE 0.001 DEG)
B-AXIS INDEX ANGLE: 0.001 DEG
MAIN SPINDLE SPEED: 35 TO 3,500 RPM
SPINDLE NOSE: JIS A2-8
THRU SPINDLE HOLE DIA: 3.54"
SUB SPINDLE SPEED: 14 - 3,800 RPM
SUB SPINDLE NOSE: JIS A2-8
**SUB SPINDLE THRU SPINDLE HOLE DIA 3.15" (**DEPENDS ON CHUCK PACKAGE - MAY HAVE NO THRU HOLE)
80 ATC
ROTARY TOOL SPINDLE SPEED: 5,000 RPM
RAPID TRAVERSE X: 1181 IPM / ZA: 1574 IPM / ZB: 1181 IPM
TOOL SHANK
MAX TOOL DIA: 5.3" / 9"
MAX TOOL LENGTH / WEIGHT: 13.77" / 44 LBS
MAIN SPINDLE MOTOR: 40 / 35 HP
SUB SPINDLE: 30 / 20 HP
ROTARY TOOL SPINDLE: 30 / 20 / 15 HP
MACHINE SIZE: 242" X 120" X 122"
MACHINE WEIGHT: 61,700 LBS

EQUIPPED WITH
OSP-P200L
80 ATC
CAT50
CHUCKS: MAIN: SHUNK 19.5" OD, ROTA NCO 500 / SUB: SHUNK 12" OD, THW B 315-86
CHIP CONVEYOR
SUB SPINDLE

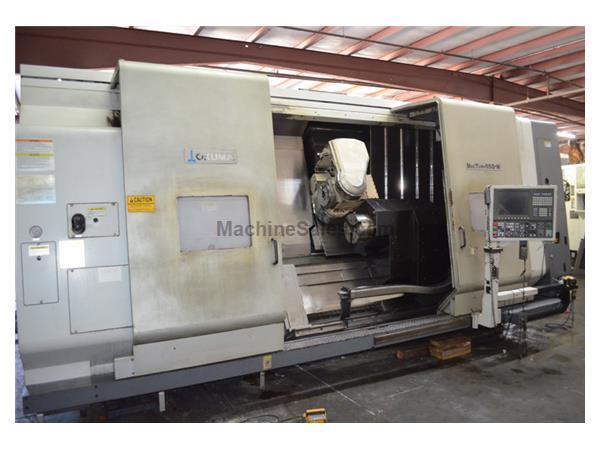

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
