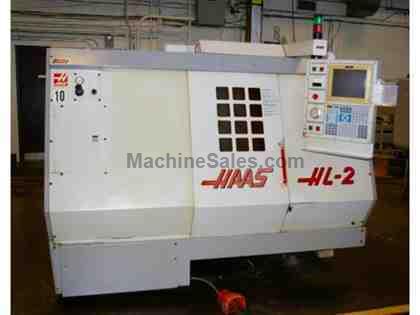

HAAS #HL2 CNC TURNING CENTER
MANUFACTURED 1995
RACO Stock Number R017868

SWING OVER BED ------------------------------- 20"
SWING OVER CROSS SLIDE -------------------- 9.5"
DISTANCE BETWEEN CENTERS ----------------- 24"
MAXIMUM CUTTING DIAMETER ----------------- 10"
MAXIMUM CUTTING LENGTH -------------------- 20"
BAR CAPACITY, MAXIMUM ----------------------- 2"
SPINDLE SPEED TO ------------------------------ 3750 RPM
SPINDLE NOSE ----------------------------------- A2-6
SPINDLE BORE ----------------------------------- 3"
TRAVELS ----------- ( X ) ------------------------ 8.6"
TRAVEL ------------ ( Z ) ------------------------ 20"
SPINDLE DRIVE --- ( PEAK ) -------------------- 15 HP A.C.

EQUIPPED WITH ---

HAAS CNC CONTROL
12 STATION TURRET
PROGRAMMABLE TAILSTOCK
SYNCHRONOUS TAPPING
CHIP CONVEYOR
COOLANT SYSTEM
8" 3 JAW HYDRAULIC CHUCK

TO VIEW VIDEO, PLEASE CLICK LINK www.racomachinery.com/vlink/17868.mp4

WEIGHT: 9000 LBS.

This machine is listed for sale by Raco Industrial Corporation located in Des Plaines, Illinois
