SPECIFICATIONS
NUMBER 2: 2
MAX SPEED: 200 DEG PER SEC
MAX TORQUE: 25 FT-LBF
NOSE THREAD: 2 3/16 IN - 10
RUNOUT MAX: 0.0004 IN
CENTER HEIGHT: 5.875 IN
COLLET SIZE: 5C
GEAR RATIO: 60:1

INDEXING:
ACCURACY: 60 ARC-SEC
REPEATABILITY: 10 ARC-SEC
BACKLASH: 50 ARC-SEC
WORM GEAR DIA: 2.8 IN
MAX ROTATION/STEP (WITH ROTARY CONTROL): 999.999 DEG

GENERAL:
POWER REQUIREMENT: 115 VAC 10 PERCENT AT 15 A
OPERATING TEMP (MAX AMBIENT): 100 DEG FAHRENHEIT

AIR REQUIREMENTS:
AIR PRESSURE MAX 150 PSI

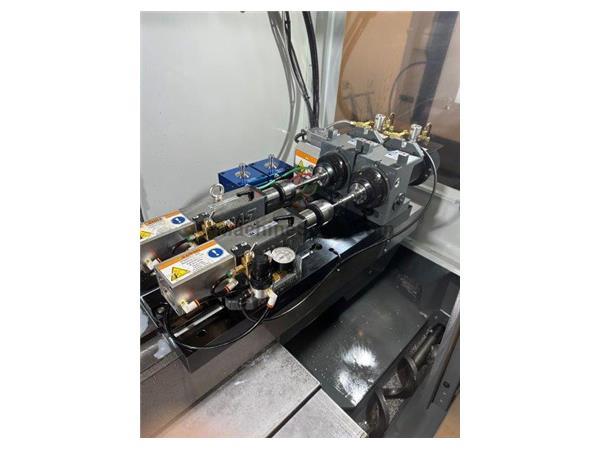

TAILSTOCK:
NUMBER 2 2
TYPE PNEUMATIC
EQUIPPED WITH
AC-100 HIGH-TORQUE AIR COLLET CLOSER WITH 1.06" (27 MM) THROUGH-HOLE.
INCLUDES ONE CLOSER FOR EACH HEAD ON MULTI-HEAD UNITS.

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
