Reference #32959

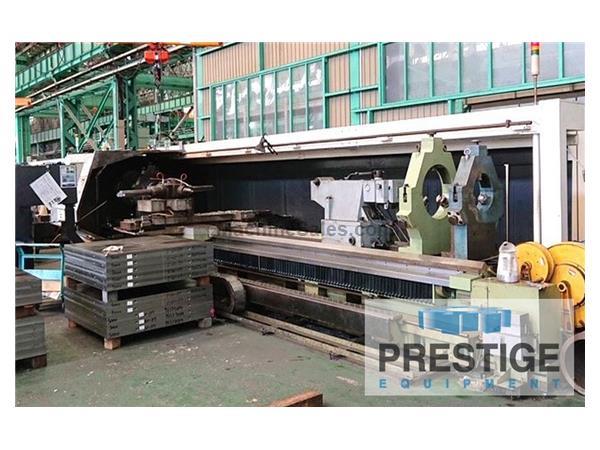

OKUMA LH-55N 43" x 236" CNC Lathe

FEATURES:
OSP-E100L CNC Control
24" 3-Jaw Chuck
6-Position Front Turret
8-Positon Rear Vertical Turret
(2) Roller Type Steady Rest
Tailstock

SPECIFICATIONS:
Swing Over Bed ........................ 43"
Swing Over Carriage Wings ............. 39.37"
Swing Over Cross Slide ................ 19.09"
Distance Between Centers .............. 236.22"
Carriage Travel, Z-Axis ............... 237.4"
Cross Slide Travel, X-Axis ............ 26.57"
Spindle Hole Diameter ................. 6.85"
Spindle Speeds ........................ 20-1200 RPM
Rapid Traverse Z-Axis ................. 393 IPM
Rapid Traverse, X-Axis ................ 196 IPM
Feed Rates ............................ .0004-39.37 IPM
Spindle Nose .......................... A2-11
Quill Diameter ........................ 4.13"
Main Motor (Cont./30 Min) ............. 50 HP / 60 HP
Machine Footprint ..................... 294" x 89"
Machine Height ........................ 82"
Machine Weight ........................ 40,360 lbs

EQUIPPED WITH:
OSP-E100L CNC Control
24" 3-Jaw Chuck
6-Position Front Turret
8-Positon Rear Vertical Turret
(2) Roller Type Steady Rest
Tailstock

This machine is listed for sale by Prestige Equipment located in Melville, New York
