SPECIFICATIONS
TRAVELS:
X - AXIS: (INCHES) 5.51"
Y -AXIS: (INCHES) 1.97"
Z- AXIS: (INCHES) 27.56" / 27.17"
# AXIS - 8
SWING - 9.8"
MACHINING LENGTH - 9.25"
CHUCK SIZE - 8"
BAR CAPACITY - 2.5"
POWER - 30 HP
MAX RPM - 5,000 RPM
TURNING DIA - 7.48"
CONTROL - CNC (FANUC / MORI MSX-501 FANUC)
APPROX. WEIGHT - 14,500 LBS.
MACHINE SPECIFICATION - CATALOG - BUYER TO VERIFY ALL
SPINDLE SPEED 5,000 RPM
SPINDLE MOTOR (HP) 30 HP
MAX SWING (INCHES) 9.8"
BAR STOCK CAPACITY 2.5"
DISTANCE BETWEEN SPINDLE NOSES 39.37"
MAX TURNING DIAMETER 7.48"
MAX LENGTH 9.25"
MAIN SPINDLE BORE 3.2"
SPINDLE NOSE A2-6
SUB SPINDLE BORE 2.9"
SUB SPINDLE BAR CAP 2"
SUB SPINDLE NOSE A2-5
ROTARY TOOL SPEED (TURRET ONE/TWO) 6,000 RPM
ROTARY TOOL MOTOR (5 MIN.) 7.5 HP
ROTARY TOOL MOTOR (15 MIN.) 5 HP
ROTARY TOOL MOTOR (CONT.) 3 HP
NUMBER OF POSITIONS (TURRET ONE/TWO) 12+ TOOLS
B-AXIS TRAVEL (SUB-SPINDLE) 30.51"
C-INDEXING 360,000DEG
RAPID TRAVERSE (X / Z / Y) 708 / 944 / 236 IPM
SUB SPINDLE RAPID TRAVERSE / C-AXIS 944 / 410 IPM

EQUIPPED WITH
8" 3 JAW CHUCK
6" 3 JAW CHUCK
2QTY. COLLET CHUCKS
PART CATCHER/CONVEYOR
MISC. LIVE AND STATIC HOLDERS
CHIP CONVEYOR W/ COOLANT SYSTEM

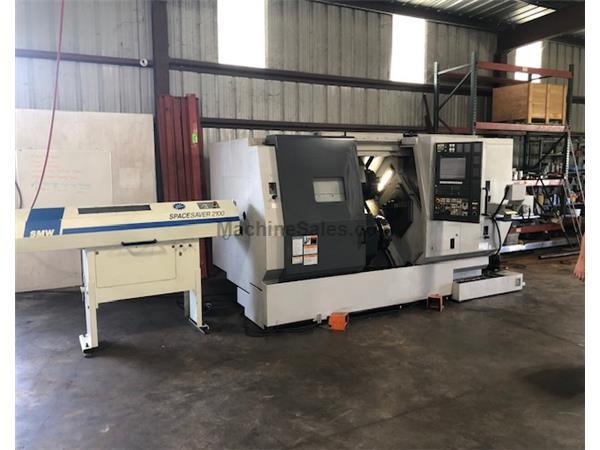

SMW SPACE SAVER BAR FEED SYSTEM

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
