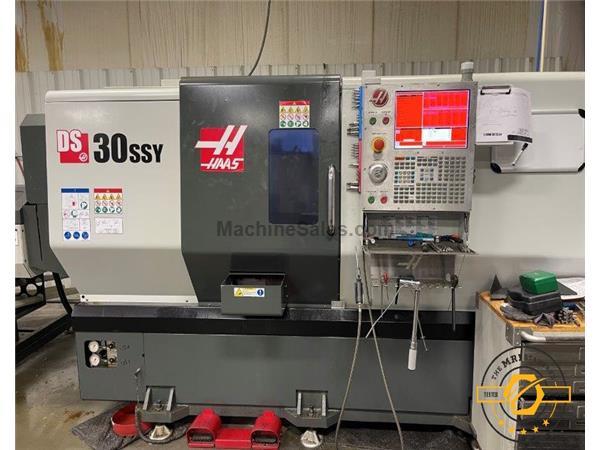

HAAS DS-30SSY CNC LATHE NEW: 2016 |MM |
|
| Stock Code: |
85424 MM |
| Price: | $RFQ |
| Subcategory: | CNC Combination Lathes |
| Swing: | 31.75" |
| Centers: | 23" |
| Year of Manufacture: |
2016 |
| Manufacturer: |
Haas |
| Model: |
DS-30SSY |
| Condition: | Used |
SPECIFICATIONS
MAIN SPINDLE TURNING DIAMETER MAX: 16.000"
MAIN SPINDLE TURNING LENGTH MAX: 23.000"
MAIN SPINDLE CHUCK DIAMETER: 8.300"
MAIN SPINDLE MAX SWING: 31.750
MAIN SPINDLE BAR DIAMETER MAX: 2.000"
MAIN SPINDLE BORE: 3.5"
SUB SPINDLE TURNING DIAMETER MAX: 16.000"
SUB SPINDLE TURNING LENGTH MAX: 23.000"
TAIL STOCK QUILL AND BODY: NONE
MULTI SPINDLE-
NUM. MAIN SPINDLES: 2
MAIN SPINDLE 1:
RPM: 4,800 , HP: 30.00
MAIN SPINDLE 2-
RPM: 4,800 , HP: 30.00
SUB SPINDLE (STANDARD):
RPM: 4,800 , HP: 20.00
TOOLING-
PRIMARY TOOL CARRIER: TURRET
MAX TOOLS: 12
ROTARY TOOL:
RPM 3,000
HP 20
POWER: 220, 3 PHASE, 65 AMPS
EQUIPPED WITH
HAAS BAR FEEDER
TOOL PRE-SETTER
10 LIVE TOOL HOLDERS
CHIP CONVEYOR
PARTS CATCHER
