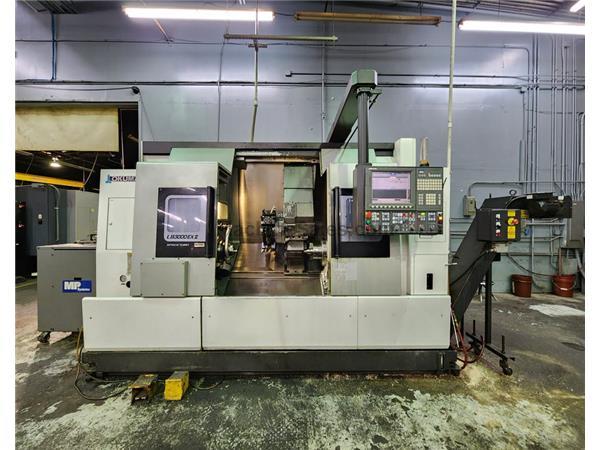

SPECIFICATIONS
TRAVELS:
X-AXIS: 10.24"
Y-AXIS : 4.53"
Z-AXIS : 39.76"
W-AXIS : 35.24"
C-AXIS: 360 DEGREE/0.001 DEGREE INCREMENT
AXIS #: 5
SWING OVER BED: 22.83"
MAX. SWING OVER CROSS SLIDE: 18.5"
MAX. TURNING DIAMETER: 13.39"
DISTANCE BETWEEN CENTER: 31.72"
SPINDLE SPEED: 45-4,500 RPM
MAIN SPINDLE THROUGH HOLE: 3.15"
SPINDLE MOTOR: 40 HP
SUB SPINDLE SPEED: 45-6,000 RPM
SUB SPINDLE MOTOR: 15 HP
SUB-SPINDLE: 6" CHUCK
LIVE TOOLING/MILLING SPEED: 45-6,000 RPM
TURRET CAPACITY: 12

EQUIPPED WITH
OSP P300L CONTROL
COLLET CHUCK ON MAIN SPINDLE
3 JAW CHUCK ON SUB
MP SYSTEMS HIGH PRESSURE COOLANT SYSTEM.
CHIP CONVEYOR
SPINDLE NOSE A2-8
BAR CAPACITY 3.18"
Y - AXIS

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
