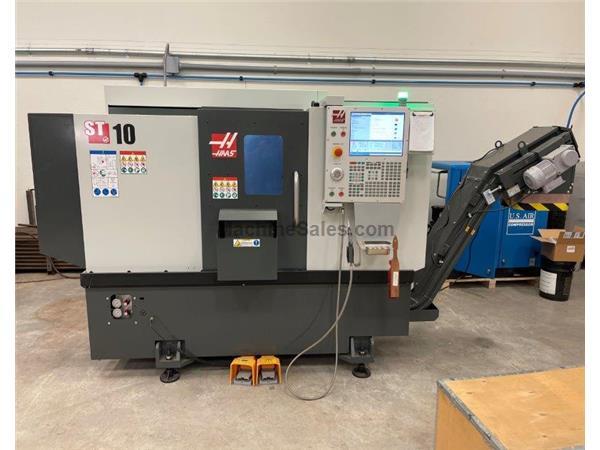

HAAS ST-10 CNC LATHE NEW: 2021 |
|
| Stock Code: |
85158 LR |
| Price: | $RFQ |
| Subcategory: | CNC Combination Lathes |
| Swing: | 25.25" |
| Centers: | 16" |
| Year of Manufacture: |
2021 |
| Manufacturer: |
Haas |
| Model: |
ST-10 |
| Condition: | Used |
SPECIFICATIONS
TRAVELS:
X- AXIS: 7.88"
Z- AXIS: 16"
BAR CAPACITY: 1.75"
CHUCK SIZE: 6.5"
SPINDLE SPEED: 6,000 RPM
SPINDLE MOTOR: 15 HP
RAPID RATE Z AXIS: 1,200 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 1,200 IPM
MAX TURNING DIA: 14"
MAX TURNING LENGTH: 16"
MAX SWING: 25.25"
MAX PART DIAMETER 16.5"
MAX THRUST X 3300 LBF
MAX THRUST Z 3300 LBF
SPINDLE NOSE A2-5
MAX TORQUE 75 FT-LBF
SPINDLE BORE 2.31"
DRIVE SYSTEM DIRECT SPEED
COOLANT CAP 30 GAL
WEIGHT: 7,900 LBS
EQUIPPED WITH
TAILSTOCK
TOOL SETTER
CHIP CONVEYOR
PARTS CATCHER
This machine is listed for sale by Machinery Resources International
located in Simi Valley, California
