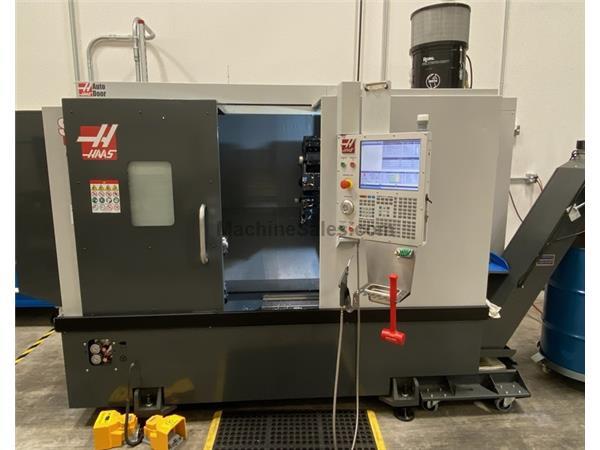

HAAS ST-25Y CNC LATHE NEW: 2019 |
|
| Stock Code: |
85380 JC |
| Price: | $RFQ |
| Subcategory: | CNC Combination Lathes |
| Swing: | 31.75" |
| Centers: | 21" |
| Year of Manufacture: |
2019 |
| Manufacturer: |
Haas |
| Model: |
ST-25Y |
| Condition: | Used |
SPECIFICATIONS
SWING: 31.75"
MACHINING LENGTH: 21"
# AXIS: 4
CHUCK SIZE: 10"
BAR CAPACITY: 3"
POWER: 30 hp
MAX RPM: 3,400 RPM
TURNING DIA.: 12"
TAILSTOCK: Yes
LIVE TOOLING: Yes
SUB SPINDLE: No
CONTROL: CNC (HAAS CNC)
DIMENSIONS: 165" x 90" x 92"
WEIGHT: 12,300 LBS
EQUIPPED WITH
HAAS 64-BIT CNC CONTROL WITH 15" LCD SCREEN
RS-232C, USB & ETHERNET PORTS FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
HIGH PRESSURE COOLANT SYSTEM (300 PSI)
SPINDLE LINER KIT, 10" 3-JAW HYDRAULIC CHUCK
PART PROBING & TOOL PRESETTER, INTUITIVE PROGRAMMING
4 LIVE TOOL HOLDERS (2 AXIAL & 2 RADIAL HOLDERS)
ROYAL QUICK CHANGE COLLET CHUCK WITH GUN
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
This machine is listed for sale by Machinery Resources International
located in Simi Valley, California
