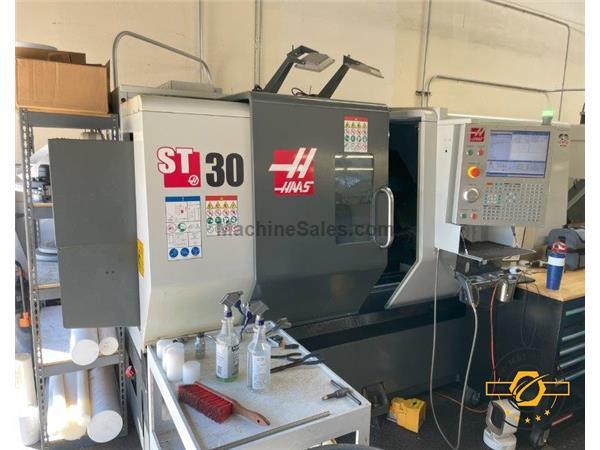

HAAS ST-30T CNC LATHE HAAS NEW: 2020 |
|
| Stock Code: |
85369 MM |
| Price: | $RFQ |
| Subcategory: | CNC Combination Lathes |
| Swing: | 31" |
| Centers: | 26" |
| Year of Manufacture: |
2020 |
| Manufacturer: |
Haas |
| Model: |
ST-30T |
| Condition: | Used |
SPECIFICATIONS
BAR CAPACITY: 3"
CHUCK SIZE: 10"
SPINDLE SPEED: 3,400 RPM
SPINDLE MOTOR: 40 HP
X AXIS TRAVEL: 12.5"
Z AXIS TRAVEL: 26"
RAPID RATE Z AXIS: 945 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 945 IPM
MAX TURNING DIA: 21"
MAX TURNING LENGTH: 26"
MAX SWING: 31"
MAX THRUST X 4100 LBF
MAX THRUST Z 5100 LBF
SPINDLE NOSE A2-8
MAX TORQUE 300 FT-LBF
SPINDLE BORE 3.5"
COOLANT CAP 55 GAL
WEIGHT: 14,300 LBS
EQUIPPED WITH
ATP AUTOMATIC TOOL PRE-SETTER
1 CONVEYOR BELT-TYPE CHIP CONVEYOR
1 PTS PROGRAMMABLE HYDRAULIC TAILSTOCK; MT4 MORSE TAPER
1 HPC HIGH-PRESSURE COOLANT SYSTEM, 300 PSI (21BAR)
1 COOLANT REFILL AUTOMATIC COOLANT REFILL SYSTEM
1 HIL-L HIGH-INTENSITY LIGHTING
1 SO SPINDLE ORIENTATION
1 ACF AUXILIARY COOLANT FILTER SYSTEM
This machine is listed for sale by Machinery Resources International
located in Simi Valley, California
