SPECIFICATIONS
TRAVELS:
X AXIS: 12.5"
Z AXIS: 26"
BAR CAPACITY: 3"
SPINDLE SPEED: 3,400 RPM
SPINDLE MOTOR: 30 HP
RAPID RATE Z AXIS: 945 IPM
TURRET TOOLS: 12 STATION BMT65 TURRET
RAPID RATE X AXIS: 472 IPM
MAX TURNING DIA: 18"
MAX TURNING LENGTH: 23"
MAX SWING: 31.75"
MAX THRUST X 4100 LBF
MAX THRUST Y 2300 LBF
MAX THRUST Z 5100 LBF
SPINDLE NOSE A2-6
MAX RATING 30 HP
MAX SPEED 3400 RPM
MAX TORQUE 300 FT-LBF
MAX TORQUE 1000 FT-LBF
LIVE TOOLING:
MAX RATING 5 HP
POSITIONING (POSITIVE/NEGATIVE) 0.01 DEGREE
BRAKE FORCE 1,000 LBF
BRAKE DIAMETER 14.4"
NUMBER OF TOOLS 12 STATIONS LIVE
MAX SPEED 4000 RPM
TOOLING BMT65
DIMENSIONS: 171" X 90" X 98"
WEIGHT: 14,300 LBS

EQUIPPED WITH
HAAS CNC CONTROL
HAAS SERVO BARFEED
COLLET CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
LIVE TOOLING
Y AXIS
COOLANT MIST FILTER

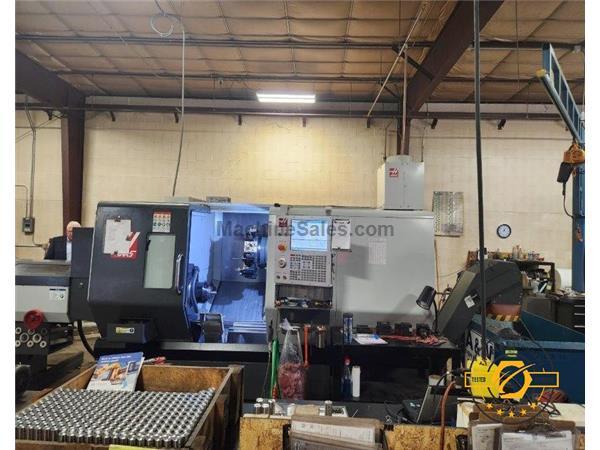

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
