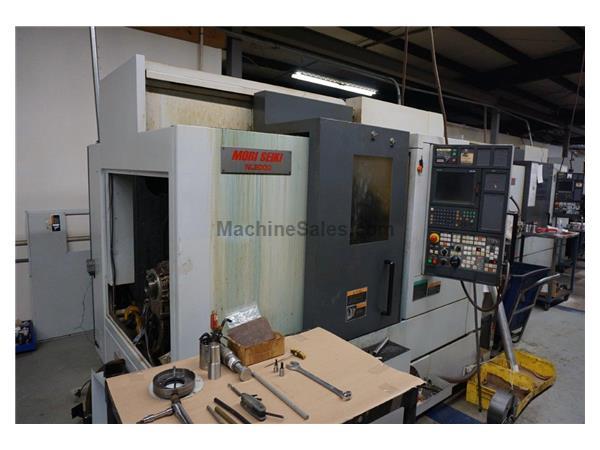

MORI SEIKI NL3000MC/700 CNC LATHE NEW: 2004 | AG |
|
| Stock Code: |
85085 AG |
| Price: | $RFQ |
| Subcategory: | CNC Combination Lathes |
| Year of Manufacture: |
2004 |
| Manufacturer: |
Mori Seiki |
| Model: |
NL3000MC/700 |
| Condition: | Used |
SPECIFICATIONS
TRAVEL
-X AXIS: 11"
-Z AXIS: 35"
TURNING DIAMETER: 16.9"
MAX TURNING LENGTH: 40"
CENTER DISTANCE: 53.9'
CHUCK SIZE: 12"
BAR CAPACITY: 3.5"
C AXIS INDEX: 0.001 DEGREES
RAPID TRAVERSE (X/Z): 1181 IPM
SPINDLE NOSE: A2-8
SPINDLE SPEED: 3,000 RPM
MAIN MOTOR: 30 HP
LIVE TOOLING SPEED: 6,000 RPM
LIVE TOOLING MOTOR: 7.5 HP
TURRET CAPACITY: 12
MACHINE DIMENSIONS: 180" X 91" X 95"
MACHINE WEIGHT: 17,000LBS
EQUIPPED WITH
MORI MSX-850 III CNC CONTROL (MITSUBISHI)
LIVE TOOLING
12 POSITION TURRET
CHIP CONVEYOR
COOLANT TANK & PUMPS
TAILSTOCK
TOOL PRESETTER
This machine is listed for sale by Machinery Resources International
located in Simi Valley, California
