SPECIFICATIONS:

TRAVEL:
X AXIS TRAVEL: 13.58"
Z AXIS TRAVEL: 39.2"
RAPID TRAVERSE X AXIS: 787 IPM
RAPID TRAVERSE Z AXIS: 944 IPM

MAX TURNING DIAMETER: 24.4"
MAX TURNING LENGTH: 34.10"
MAX BAR CAPACITY: 7.28"
SWING OVER BED: 28.8"
DISTANCE BETWEEN CENTERS: 43.5"

SPINDLE:
SPINDLE NOSE: A2-15
SPINDLE BORE:7.99"
SPINDLE SPEED: 1500 RPM
SPINDLE MOTOR: 50/40 HP

TURRET:
TURRET CAPACITY: 12 STATIONS
TURRET INDEX TIME: 1 SECOND

TAILSTOCK:
TAILSTOCK BODY TRAVEL: 33.46"
TAILSTOCK QUILL DIA.: 4.33"
TAILSTOCK QUILL STROKE: 5.90"
TAILSTOCK TAPER: MT-5

GENERAL:
POWER SOURCE: AC 220 V, THREE PHASE, 60 HZ
POWER REQUIREMENT: 45 KVA
OVERALL DIMENSIONS: 136" X 74? X 98" HIGH
OVERALL DIMENSIONS: 180" X 74? X 98" HIGH WITH CONVEYOR
WEIGHT : 14000 LBS APPROX"

EQUIPPED WITH:

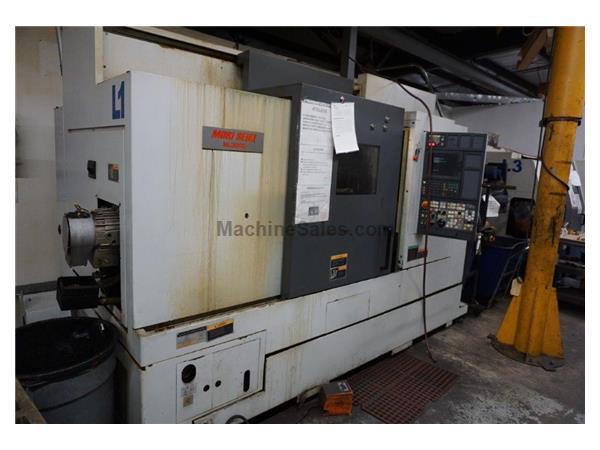

CNC CONTROL MORI SEIKI MSX-850III
3.5" BIG BORE
15" HYDRAULIC CHUCK WITH 7" BORE
12 STATION HIGH SPEED TURRET
TOOL PRESETTER
50 HP GEARBOX SPINDLE
PCMCIA CARD SLOT
RS-232
PROGRAMMABLE TAILSTOCK
RIGID TAPPING
COOLANT SYSTEM
FOOT SWITCH
CHIP CONVEYOR.

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
