Specifications:

TRAVELS:
X AXIS: 9.3"
Z AXIS: 20.5"
C AXIS INDEXING: 0.001
RAPID RATE Z AXIS: 708 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 945 IPM
MAX TURNING LENGTH: 12.7"
MAX SWING: 26.8"
DIMENSIONS: 92" X 74" X 74"
BAR CAPACITY: 2.5"
CHUCK SIZE: 8"
SPINDLE SPEED: 4,500 RPM
SPINDLE MOTOR: 15 HP
SPINDLE BORE: 2.9"
SUB SPINDLE MOTOR: 10 HP
SUB SPINDLE SPEED: 6,000 RPM
WEIGHT: 13,000 LBS

Equipped With:

FANUC CONTROL
CHIP CONVEYOR
LIVE TOOLING
FULL C-AXIS
TAIL STOCK
TOOL SETTER

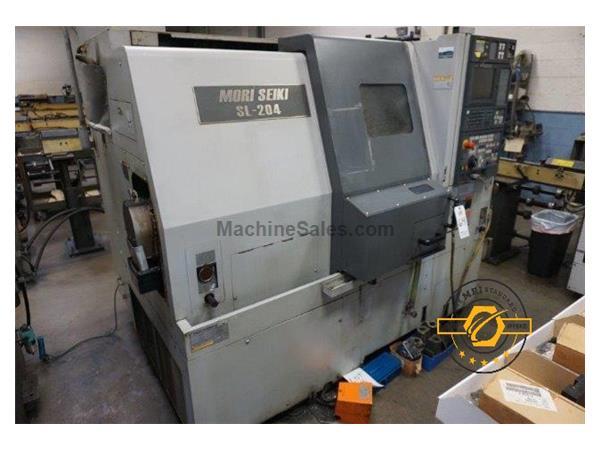

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
