Reference #32509

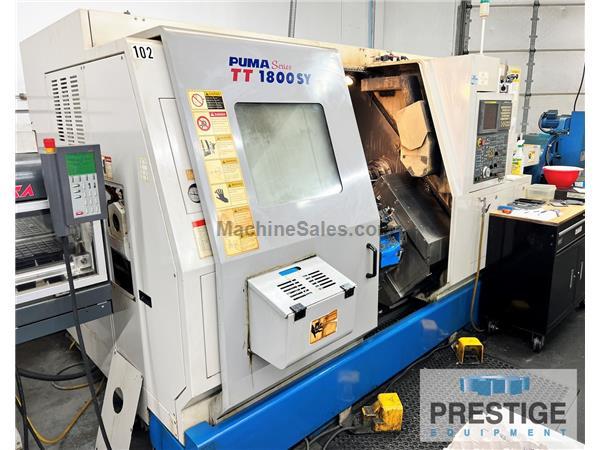

Doosan TT1800SY 7-Axis CNC Turning & Milling Center

FEATURES:
Fanuc 18iT CNC Control
Twin Opposed Spindles w/ Collect Chucks
Twin 12-Position Turrets with Live Milling
Lots of Tooling
Multiple Spindle Liners
LNS Quickload Servo S3 Barfeeder
Chip Conveyor

SPECIFICATIONS:
With Dual Opposed Spindles, Upper & Lower Turrets
Swing Over Carriage ................... 9.05"
Max. Turning Dia., Upper & Lower ...... 9.05"
Max. Bar Capacity ..................... 2.625"
Spindle Speed ......................... 5000 RPM
Spindle Nose . ........................ ASA-A2-6
Spindle Draw Tube I.D. ................ 2.68"
Spindle Bore Diameter ................. 2.99"
Spindle Motor ......................... 30 HP
C-Axis Min. Programmable Angle ........ .001 L&R
C-Axis Rapid Traverse Rate ............ 600 RPM
Y-Axis Travel ......................... 3.93"
Y-Axis Rapid Traverse Rate ............ 295 IPM
X1 Axis Travel ........................ 6.5"
X-Axis Rapid Traverse Rate ............ 787 IPM
Z-Axis Rapid Traverse Rate ............ 1574 IPM
Turret Stations ....................... 12 + 12
Tool Holder Type ...................... BMT 55P
Turning Tool Shank Size ............... .75"
Boring Bar Diameter ................... 1.25"
Rotating Tool Speed ................... 5000 RPM
Rotating Tool Motor ................... 7.5 HP
Rotating Tool Collet Type ............. ER-25
Milling Collet Capacity ............... .079"-.629"
Coolant Pump PSI ...................... 65 PSI
Coolant Tank Capacity ................. 76 Gallons
Net Weight ............................ 17,196 lbs.

EQUIPPED WITH:
Fanuc 18iT CNC Control
Twin Opposed Spindles w/ Collect Chucks
Twin 12-Position Turrets With Live Milling
Y-Axis on Upper Turret
Lots of Tooling
Multiple Spindle Liners
LNS Quickload Servo S3 Barfeeder
Chip Conveyor

This machine is listed for sale by Prestige Equipment located in Melville, New York
