Specifications:

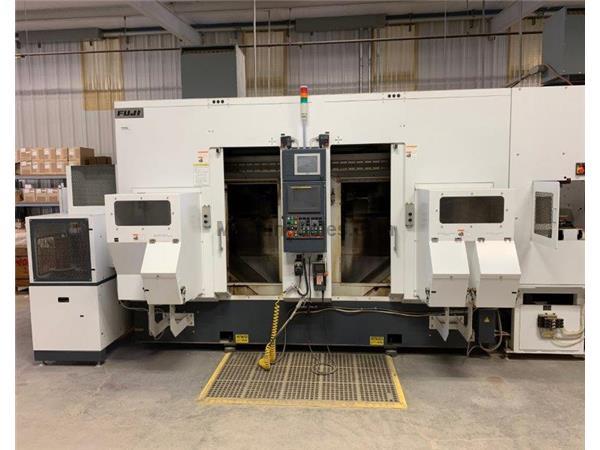

ANW-4100 SPECIFICATIONS:
RECOMMENDED WORK SIZE: MM[INCH] 300DIAMETER X 120 [11.8DIAMETER X 4.7]
SPINDLE DIAMETER: MM[INCH] 120DIAMETER [4.7DIAMETER]
SPINDLE NOSE: A2-8
SPINDLE BORE: MM[INCH] 67DIAMETER [2.6DIAMETER]
SPINDLE SPEED: MIN-1 MAX. 3000
SPINDLE MOTOR: KW[HP] 18.5/22 [25/30]
NUMBER OF TOOL STATIONS: 12+12
TURRET INDEX TIME: SEC 1.2
TURRET MECHANISM: TWO-PIECE COUPLING
CHUCK SIZE: INCH 10
SLIDE STROKE: X-AXIS MM[INCH] 265 [10.43]
Z-AXIS MM[INCH] 455 [17.91]
FEED MOTOR: X-AXIS KW[HP] 4.0 [5.4]
Z-AXIZ KW[HP] 4.0 [5.4]
ANW-4100 ROBOT SPECIFICATIONS:
ROBOT: L292-B1 OPTION : L292-J
CARRYING CAPACITY: KG [ LB. ] 10+10 [22+22] OPTION: 30 [66]
ROBOT CONTROLLER: MAX SP1
ANW-41000 MACHINE SIZE:
FOOTPRINT: MM X MM [ FEET, INCH X FEET, INCH ]
MACHINE HEIGHT: MM [ FEET, INCH ]
MACHINE WEIGHT KG [ LB. ]
MACHINE SPECIFICATIONS WITH LIVE TOOL:
ROTARY SPEED: MIN-1 5000
OUTPUT: KW[HP] 2.2/3.7 [3/5]
HOLDER SIZE: MM 1DIAMETER~20
NUMBER OF TOOL: 12
ANW-4100 CNC CONTROL: FANUC 0I-TD

Equipped With:

ANS MACHINE IS COMBINED TO USE WITH THE ANW-4100 AS A CELL

ANS MACHINE SPECIFICATIONS:
RECOMMENDED WORK SIZE: MM 300DIAMETER X 120 [ 11.8DIAMETER X 4.7 ]
SPINDLE DIAMETER: MM [ INCH] DIAMETER120 [ 4.7 ]
SPINDLE NOSE: A2-8
SPINDLE BORE: MM [ INCH] 67DIAMETER [ 2.6 ]
SPINDLE SPEED: R.P.M MAX. 3000
SPINDLE MOTOR: KW [ HP ] 18.5/22 [ 25/30 ]
NUMBER OF TOOL STATIONS: 12
TURRET INDEX TIME: SEC 1.2
TURRET MECHANISM: TWO-PIECE COUPLING
CHUCK SIZE: INCH 10
CNC CONTROL: FANUC 0I-TD
SLIDE STROKE: X- AXIS MM[INCH] 265 [ 10.43 ]
Z-AXIS MM[INCH] 445 [ 17.52 ]
FEED MOTOR: X-AXIS KW[ HP] 4.0 [ 5.4 ]
Z-AXIS KW [HP] 4.0 [ 5.4]
MAX. WORK LENGTH: 350[13.8]
CENTER BUILT-IN TYPE: MT.4
QUILL STROKE: 130 [5.12]
QUILL DIAMETER: 100DIAMETER [3.9]
ANS ROBOT SPECIFICATIONS:
ROBOT: L292-B1
CARRYING CAPACITY: KG [ LB. ] 10+10 [ 22+22 ]
ROBOT CONTROLLER: MAX SP1
ANS MACHINE SIZE:
FOOTPRINT: MM X MM [FEET,INCH X FEET, INCH]- 1850 X 2106 [ 6'1" X 6'11" ]
MACHINE HEIGHT: MM[FEET,INCH]- 2420 [ 7'11" ]
MACHINE WEIGHT: KG [LB.]- 4000 [ 8800 ]
ANS CNC CONTROL: FANUC 0i-TD

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
