Reference #32188

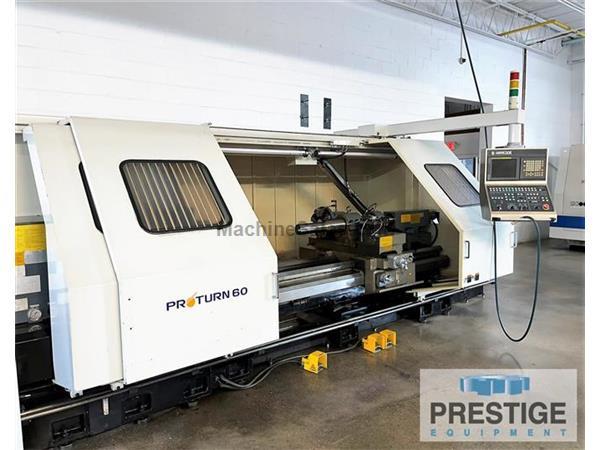

Hankook 29" x 78" Proturn-60x2000 CNC Flat Bed Lathe

FEATURES:
Fanuc 21i-TB CNC Control
4-Position Tool Post
8-Position Turret
Boring Carriage
12" 3-Jaw Chuck
Hydraulic Tailstock

CAPACITIES:
Swing Over Bed ........................ 28"
Swing Over Carriage ................... 19"
Distance Between Centers .............. 78.4"
Max. Machining Diameter ............... 12"
Max. Machining Length ................. 83"
Spindle Nose to Turret Face ........... 5"-89.7"
Maximum Load Between Centers .......... 6600 Lbs.
Maximum Load Capacity, Chuck Only ..... 1650 Lbs.
Spindle Speeds, 3-Step ................ 2.8-2000 RPM
Spindle Nose .......................... A-11"
Front Bearing I.D. ................... 5.9"
Hole Thru Spindle ..................... 4.13"
Width of Bed .......................... 19.7"
Length of Bed ......................... 152"
Spindle Motor, Continuous/30-Minute ... 25 HP/30 HP
Tailstock Quill Stroke ................ 7.9"
Taper in Tailstock .................... #6MT
Tailstock Quill Diameter .............. 4.4"
Dimensions, Machine Only .............. 207" x 91"
Approximate Weight .................... 16,000

EQUIPPED WITH:
Fanuc 21i-TB CNC Control
12" 3-Jaw Chuck
4-Position Tool Post
8-Position Turret
Boring Carriage
Steady Rest
Hydraulic Tailstock
Chip Conveyor
Full Enclosure

NOTE:
Inspect in Plant Under Power

This machine is listed for sale by Prestige Equipment located in Melville, New York
