Reference #32465

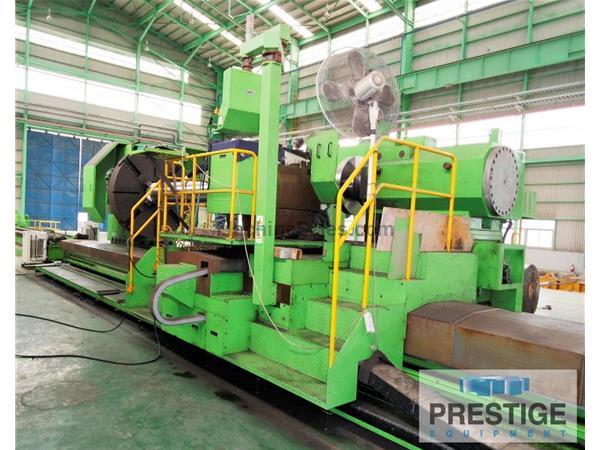

86" x 590" Hankook R70W Heavy Duty CNC Roll Lathe

FEATURES:
Fanuc 32iT CNC Control
4-Way Bed - Carriage Can Pass Steady Rests And Tailstock!
70 Ton Weight Capacity

CAPACITY:
Maximum Swing Over Bedways ............ 88.6"
Maximum Swing Over Cross Slide ........ 70.86"
Distance Between Centers .............. 590.55"
Rapid Traverse (X-axis) ............... 157 IPM
Rapid Traverse (Z-axis) ............... 263 IPM
Spindle Speeds: ....................... 1-185 RPM
Spindle Motor ......................... 215 HP
Max Spindle Torque .................... 86,400 Ft. Lbs
Max Load Between Centers .............. 154,300 Lbs

EQUIPPED WITH:
FANUC 32iT CNC Control
4-Jaw Chuck
Telescoping Steel Way Covers
Steady Rest
4-Way Bed

Note:
Carriage Can Pass the Steady Rests and Tailstock!

This machine is listed for sale by Prestige Equipment located in Melville, New York
