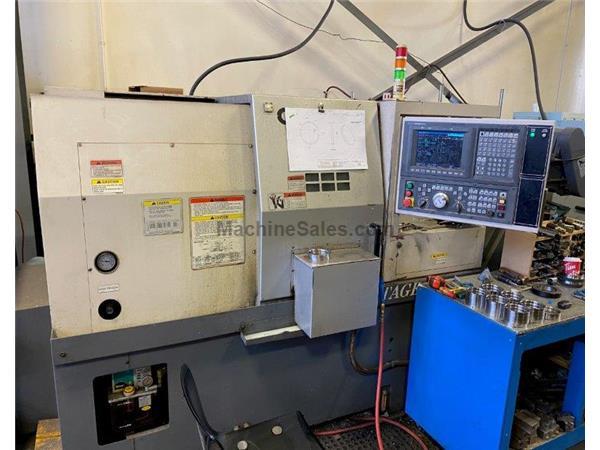

SPECIFICATIONS:
TRAVELS:
X- AXIS: 8.10"
Z- AXIS: 20.47"
SWING: 20.8"
MACHINING LENGTH: 19.68"
TURNING DIA: 12.2"
MAX TURNING DIAMETER:12.20"
MAX TURNING LENGTH: 19.68"
MAX BAR CAPACITY: 3.05"
SPINDLE NOSE: A2-8
SPINDLE BORE: 3.15"
SPINDLE SPEED: 30-3000 RPM
SPINDLE MOTOR: 20 HP
SWING OVER BED: 21.65"
DISTANCE BETWEEN CENTERS: 24.6"
RAPID TRAVERSE X AXIS: 787 IPM
RAPID TRAVERSE Z AXIS: 984 IPM
TURRET CAPACITY: 12 STATIONS
TURRET INDEX TIME: 0.5 SECOND
TAILSTOCK BODY TRAVEL: 14.3"
TAILSTOCK QUILL DIA.: 3.54"
TAILSTOCK QUILL STROKE: 3.93"
TAILSTOCK TAPER: MT-5
POWER SOURCE: AC 220 V, THREE PHASE, 60 HZ
POWER REQUIREMENT: 68 AMPS
OVERALL DIMENSIONS: 140" X 68" X 80" HIGH
WEIGHT: 8,500 LBS

EQUIPPED WITH:
OSP U10L CNC CONTROL
CHIP CONVEYOR
10" CHUCK
TAILSTOCK
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
