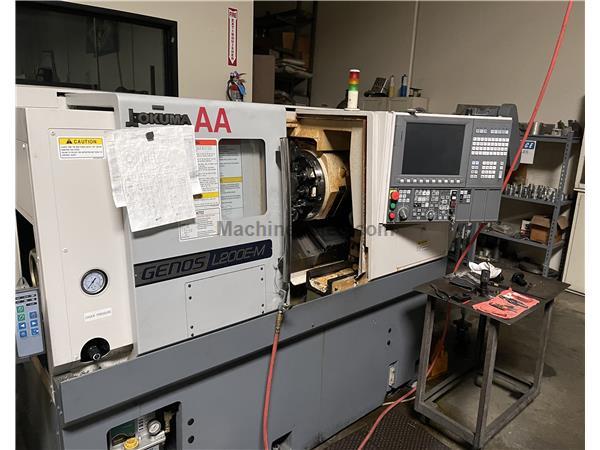

Okuma Genos L200E-M Lathe with Live Tooling

Includes ATS EC-565 Bar Feeder

Both Purchased new in 2014 and have had VERY LIGHT USE.

Swing over bed 17.71"
Swing over cross slide 7.87"
Max work length 8.66"
X axis 6.49"
Z axis mm 9.65"
C axis 360° ( 0.001° increments)
Spindle speed min־¹(rpm) 3,000
Speed ranges Infinitely variable
Spindle nose JIS A2-6
Spindle bore dia mm Ø66
Front bearing dia mm Ø100
Type V12 Turret / NC
No. of tools 12
OD tool shank mm 20x20
ID tool shank dia mm Ø32
Turret indexing time sec 0.1
Spindle speed min־¹(rpm) 6,000 (standard radial mill/drill holder: 5,000rpm)
Speed range Infinitely variable
Feedrates Rapid traverse(X, Z ) m/min X:20 , Z:25
Rapid traverse(C) min־¹(rpm) C：200
(X,Z,Y) mm/rev 0.001~1,000.000
Main spindle(30min/cont) kW VAC7.5/5.5
spindle kW PREX 4.0/1.8 (25 min/cont)
Axis drive(X) kW 2.2
Axis drive(Z) kW 3.0
Coolant pump motor kW 0.25
Machine size Height mm 1,624
Floor space mm 1,752x1,592
Weight(with CNC) kg 2,800/ 6173 lbs
CNC OSP-P300LA-e

This machine is listed for sale by 2014 Okuma Genos L200E-M CNC Lathe with Live Tooling and Bar Feeder for sale by JAV Industries located in Upland, California
