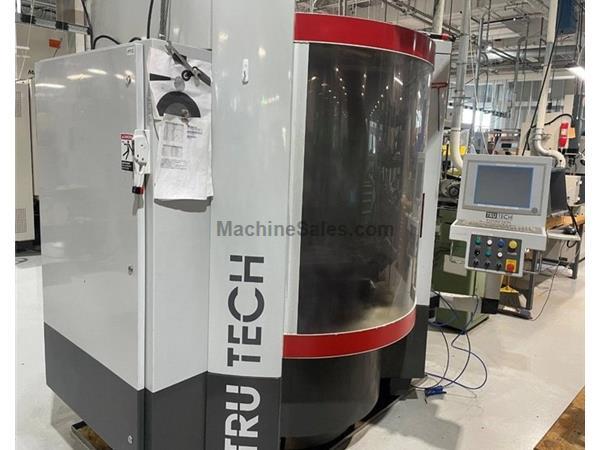

8"L x 3"Ø Tru Tech Revolution T93X, 8"Ø Wheel, 3 H |
|
| Stock Code: |
51539 |
| Price: | $RFQ |
| Subcategory: | Centerless Grinders CNC |
| Year of Manufacture: |
2016 |
| Manufacturer: |
Tru-Tech |
| Model: |
Revolution T93X |
| Condition: | Used |
Year Built - 2016
CATALOG SPECIFICATIONS:
Grind Length – Maximum…………8″
Grind Diameter – Maximum…………3″
Grind Diameter – Minimum…………Tooling Dependent
X-Axis Travel – Maximum…………16″
Y-Axis Travel – Maximum…………9″
Z-Axis Travel – Maximum…………8.6″
Wheel Diameter – Maximum…………8″
Spindle Power…………3 HP
Spindle RPM – Maximum…………5,000 RPM
Velocity – Maximum…………50 IPM
Input Increment…………+/-0.000010″
Accuracy – Minimum…………+/-0.00005″
Repeatability – Minimum…………+/-0.000025″
Dimensions – Approximate…………105″ x 73″ x 96″(H)
Weight – Approximate…………5,800 Lbs.
EQUIPPED WITH:
Perimetric Profile Grinder. Profiles with a standard 1A1 Wheel. Profile Grind, Plunge grind, Peel Grind, In-feed & thru-feed grind.
Tru Tech intuitive Pick-N-Place programming Software. Three-Axis fully programmable. Touch Screen Pendant. Drag icons into place, edit their values and start grinding.
3-Point Perimetric Work-holding. 5" Tru Tech Model TT-5000 Precision Grinding Unit(Rebuilt 2025)
In-Process Dressing
High Density Granite Base
Top Mounted Mist Collector
Available Documentation
*Catalog specifications, pending confirmation.
This machine is listed for sale by Liberty Machinery Company
located in Lincolnshire, Illinois
