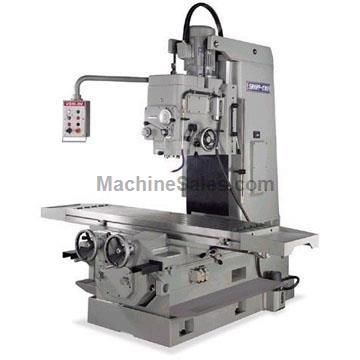

NEW 15" x 67" SHARP MODEL KMA-1 VERTICAL BED MILL - $RFQ

Item Number: #00133643
NEW 15&quot; x 67&quot; SHARP MODEL KMA-1 VERTICAL BED MILL

NEW 15" x 67" SHARP MODEL KMA-1 VERTICAL BED MILL
Stock Code:  14567
Price: $RFQ
Subcategory:

Centering & Cut-Off Millers

Manufacturer:  Sharp
Model:  KMA-1
Condition: New

NEW 15" x 67" SHARP MODEL KMA-1 VERTICAL BED MILL



Heavy duty vertical bed mill equipped with geared head spindle and massive hardened and ground bed ways for heavy milling




  • The vertical column is made out of box shape high tensile strength casting reinforced with honeycombed ribbings. It offers excellent vibration dampening features and great mechanical and thermal stability.



  • The saddle and vertical head travels on hardened and ground box ways that offer maximum rigidity. All top, front, rear reference surfaces and T slots are precision ground to exact tolerance.



  • The vertical head is equipped with a #50 fixed quill spindle for heavy duty milling.


""

  • Besides a manual coarse and fine feed on the vertical head, it is also equipped with power feed for easy positioning. A tri-lever handle mounted in the front for easy operation performs manual rapid movement of the head.


""

  • A separate pendant control performs all the spindle operations, coolant and power drawbar operations .


""

  • The unique sliding saddle base design allows easy movement of the entire 23” of the cross travel, manually or by power.


""

  • The table is equipped with a double nut backlash eliminator, which adjusts the backlash on the table travel when the screw and nut start to wear out.



  • The automatic lubrication system lubes the table and saddle ways.



  • The extensive vertical head travel along with various feed rates offer capability for precise boring operations.



  • A horizontal milling head (5 HP, #50 taper) is installed on the side of the vertical column on Model KMA-3H. It travels on precision ball screw with AC servo drive.

















































Table travel (longitudinal) 39”
Saddle travel (cross) 15”
Spindle head travel 20”
(Spindle nose to table top vertical) 4”-24”
Spindle center to column front 15”
Horizontal head travel (up & down) na
Dist. bet horiz.and vert head na
TABLE
Table working area 67x15”
T-slot (Wide x No. x pitch) 0.7”x5x2-3/4”
Table top to floor 31-1/2”
