Workpiece Length Standard Range Machine

2" - 42"

Clearance from Tailstock Center to Column

6.2"

Vise Capacity (Standard Jaws)

.060" - 6"

Cone Angle of Center Holes Ground

60 Deg.

Max Center Hole Ground

2"

Minimum Center Hole Ground (Large End)

.050

Grinding Spindle Speeds (with Pulley Change)

13000/21500/45000 RPM

Planetary Drive Speed

330 RPM

Angular Grinding Stroke

.005" - .100"

Wheel Drive Motor

.5 HP, 3600 RPM

Planetary Drive Motor

.25 HP, 900 RPM

Wired For

3/60/480V

Approximate Dimensions

44" x 42" x 75"

Approximate Weight

1,500 lbs

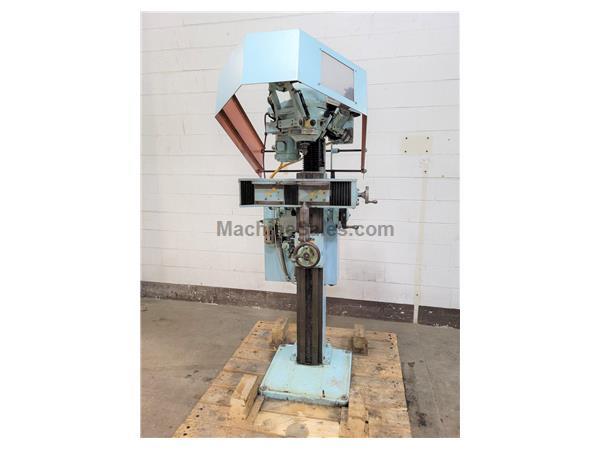

EQUIPPED WITH:60° Center Hole Grinding. Precision 2-Jaw Automatic Workpiece Centering Vise for Upper End of Workpiece. Tailstock For Lower End Support. Swing Away Headstock Center. Pivoting Wheel Dressing Device. Adjustable Grinding Stroke. Adjustable Spindle Speeds. Wheel Spindle Lubrication System. Swing Down Wheel Guard.

This machine is listed for sale by Adams Machinery Company located in Lake Bluff, Illinois
