BAILEIGH Hydraulic Roll Bender R-H45 - $RFQ

Item Number: #00064668

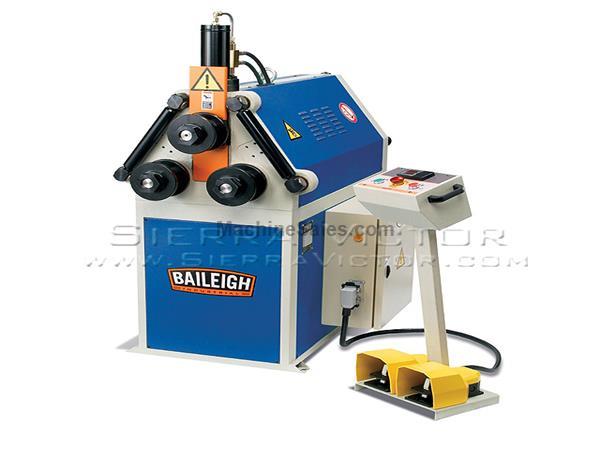

BAILEIGH Hydraulic Roll Bender R-H45

BAILEIGH Hydraulic Roll Bender R-H45
Stock Code:  R-H45
Price: $RFQ
Subcategory:

Benders - Pipe Tube & Bar

Manufacturer:  Baileigh
Model:  R-H45
Condition: New
Play YouTube Video

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs
Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.
All 3 rolls turn on industrial motor and transmission.
Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.
Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
Siemens inverter drive enables soft start-ups to prolong motor life.
Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
Fully-welded steel plate frame adds strength to the machine and minimizes flex.
Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.
Why choose the Hydraulic Roll Bender R-H45 over similar machines?
Heavy steel construction ensures that the R-H45 will deliver accurate bends at maximum capacity for years.
We use only the highest-quality components. For example, the Siemens brand inverter offers overload protection, keeps machinery from wearing out, and helps this pipe bender to last longer.
Comes equipped with segment rolls, lateral roll guides for coiling, and an operator pendant—features that some other companies might count as upgrades.
Accepts durable tooling options, made and stocked by Baileigh, to suit a variety of applications.
Expert assistance and advice is always a phone call away! Baileigh’s experienced team of reps is on-call to troubleshoot as long as you’re using the R-H45.

SPECIFICATIONS:
Roll Adjustment: Hydraulic
Pipe Capacity: Size: 2" (sch. 40) / Min. Dia.: 48"
Round Tube Capacity: Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity: Size: 2" (.120") / Min. Dia.: 51"
Solid Round Capacity: Size: 1.5" / Min. Dia. 28"
Flat Bar Easy Way: Size: 4" (.75") / Min. Dia. 28"
Flat Bar Hard Way: Size: 3.25" (.375")/ Min. Dia.: 32"
Angle Iron Capacity: Size: 2" (.250")/ Min. Dia.: 36"
Shaft Diameter: 1.772"
Shaft Center Distance Lower Rolls: 9.562"
Lower Roll Dia.: 5.827"
Pinch: Single
Power: 220V Single Phase
*Optional Tooling: Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
Shipping Dimensions (L/W/H): 60" x 44" x 68"
Shipping Weight: 1,188 lbs.

*All Specs based of 60,000 PSI (42 kg/mm2) Tensile Strength - Mild Steel

**Specs are to be used as a base line for purchase purposes only

OPTIONAL ITEMS:
Pipe / Tube Bending Rolls
Angle Bending Rolls
DON'T MAKE THE COSTLY MISTAKE OF ORDERING THE WRONG BENDING ROLLS FOR YOUR JOB OR PROJECT! CALL OR EMAIL US FOR A CUSTOM QUOTE ON PIPE OR ANGLE BENDING ROLLS THAT WILL BEST FIT YOUR NEEDS

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
