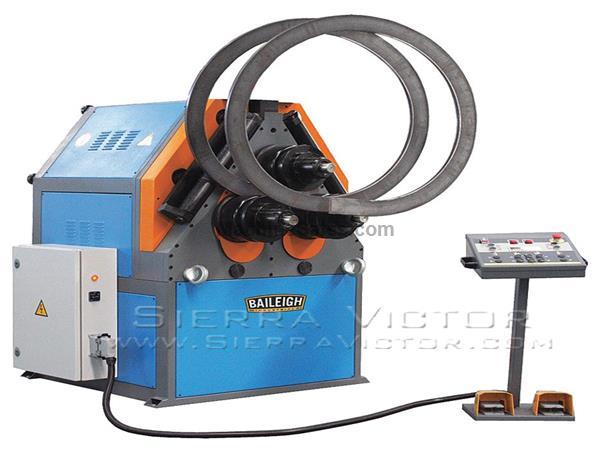

BAILEIGH R-H85E Double Pinch Roll Bender
Benders - Pipe Tube & Bar CNC
CALL FOR AVAILABILITY AND BEST PRICING!
This hydraulic double-pinch ring roller reduces material waste and cuts down on bend time
Runs on 220-volts 3-phase power.
Bends up to 3” schedule 40 pipe and 3.375” x 3.375” x .25" angle iron.
All 3 rolls, 1 fixed top roll and 2 bottom rolls, driven by industrial-grade hydraulic transmission with independent hydraulic cylinders.
Digital readout programmers let you monitor the exact encoder-specified positions of each roll.
You can easily input programmable stops or adjust roll positions from the movable podium control.
Convenient foot pedals, located at podium base, stop and start roll bender in reverse and forward modes.
Manually adjustable lateral angle guides help bend material to a wide range of coil widths.
To accommodate longer pieces of material, you can safely tip the machine onto its back in horizontal mode.
Includes a set of hardened segmented rolls that can handle diverse profiles.
Fully-welded steel plate framework gives this hydraulic roll bender the strength to bend at full capacity, day in, day out, for years, and deliver accurate results.
Covered by a 1-year parts warranty and lifetime technical support by phone
Why choose the R-H85E over similar machines?
Double-pinch rolls let you pre- and post-bend, minimizing those money-wasting pieces of straight material left over at the start and finish.
Few roll benders can match the tough steel plate construction of the R-H85, which minimizes flex and maintains accuracy.
Overload-protected inverter drive extends machine’s working lifetime.
You can perform all machine functions at once from the well-organized control panel.
Choose from many optional tooling sets to suit specific applications, kept in stock for quick shipment.
Troubleshooting and project advice from Baileigh’s knowledgeable team is always just a phone call away, as long as you’re using the R-H85E.
Driven Rolls: 3
Roll Adjustment: Hydraulic
Pipe Capacity: Size: 3" (sch. 40) / Min. Dia.: 68"
Round Tube Capacity Size: 4" (.120") / Min. Dia: 118"
Square Tube Capacity: Size: 2.75" (.157") / Min. Dia: 118"
Solid Square Capacity: Size: 2.375" / Min. Dia. 46"
Solid Round Capacity: Size: 2.375" / Min. Dia. 40"
Flat Bar Easy Way: Size: 5" (1") / Min. Dia. 24"
Flat Bar Hard Way: Size: 4" (.787") / Min. Dia. 83"
Shaft Diameter: 3.15"
Upper Roll Dia.: 9.65"
Lower Roll Dia.: 9.65"
Speed: 5.2 rpm.
Motor: 10.5 HP
Power: 220V 3-Phase
*Optional Tooling: Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
Shipping Dimensions: 60" x 60" x 68"
Shipping Weight: 3,550 lbs
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
