Reference #32653

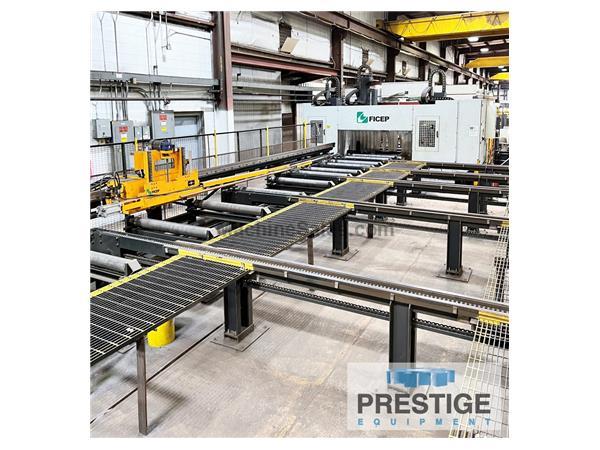

Ficep 1203 DDB CNC Drill & Saw Line With Material Handling

CAPACITY:

FICEP 1203 DDB DRILL:
No. Of Spindles ...................... 3
Beam Depth, Maximum .................. 48"
Flange Height Maximum ................ 24"
Maximum Drill Diameter ............... 1-9/16"
Maximum Drill Thickness .............. 5"
Spindle Motor ........................ 23 HP
Spindle Rotation Speed ............... 180-5000 RPM

FICEP K126 MITERING BAND SAW:
Max. Sawing Capacity at 90° .......... 49-1/8" x 24"
Sawing Capacity at 45° ............... 31-1/2" x 24"
Sawing Capacity at 60° ............... 20" x 20"
Blade Speed .......................... 196 - 557 FPM
Motor Power .......................... 20 HP

EQUIPPED WITH:
Ficep Pegaso CNC Control
(1) Vertical Drilling Spindle With(6)Station ATC
(2) Horizontal Drilling Spindles Each With(6)Station ATC
(3) Drill Head Positioning Systems complementary to the X-axis
Automation system for sections/pieces loading & unloading
Automatic Loading & Unloading Using Transfer Table With Catches
Underside Scribing
Chip Conveyor For Drill
Automatic Web Probe
Special Scrap Conveyor
Enhanced Performance Package
Carriage Feed
Short Piece Unloading Device
65' Infeed Conveyor With (8) Transfers
65' Outfeed conveyor With (8) Transfers

NOTE:
To Be Sold At Auction 6/28
Ficep Structural Steel Fabrication Lines & Wheelabrator Shot Blast Line
https://www.bidspotter.com/en-us/auction-catalogues/bscpres/catalogue-id-bscpres10128

This machine is listed for sale by Prestige Equipment located in Melville, New York
