Reference #32652

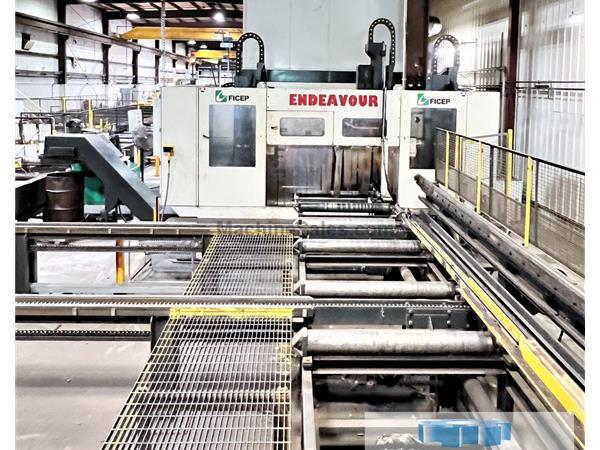

Ficep 1204 DDRC CNC Drill & Thermal Cutting System With Material Handling

CAPACITY:

FICEP DRILL:
No. Of Spindles ...................... 3
Beam Depth, Maximum .................. 48"
Flange Height Maximum ................ 24"
Maximum Drill Diameter ............... 1-9/16"
Maximum Drill Thickness .............. 5"
Spindle Motor ........................ 23 HP
Spindle Rotation Speed ............... 180-5000 RPM

FICEP THERMAL COPING UNIT:
Robot, no of axes ..................... 5+1
Maximum Processing Size ............... 48" x 31"
Thermal Cutting Torch ................. Hypertherm HPR260XD
Oxy Cutting Torch ..................... Yes
Automatic Torch Changing Device ....... Yes
Automatic Gas Control Panel ........... Yes

EQUIPPED WITH:
Ficep Pegaso CNC Control
(1) Vertical Drilling Spindle With(6)Station ATC
(2) Horizontal Drilling Spindles Each With(6)Station ATC
(3) Drill Head Positioning Systems complementary to the X-axis
Underside Scribing
Chip Conveyor For Drill
Automatic Web Probe
Enhanced Performance Package
Carriage Feed
Short Piece Unloading Device
Smoke Intake System For Coper
65' Infeed Conveyor With (8) Transfers
65' Outfeed conveyor With (8) Transfers

NOTE:
To Be Sold At Auction 6/28
Ficep Structural Steel Fabrication Lines & Wheelabrator Shot Blast Line
https://www.bidspotter.com/en-us/auction-catalogues/bscpres/catalogue-id-bscpres10128

This machine is listed for sale by Prestige Equipment located in Melville, New York
