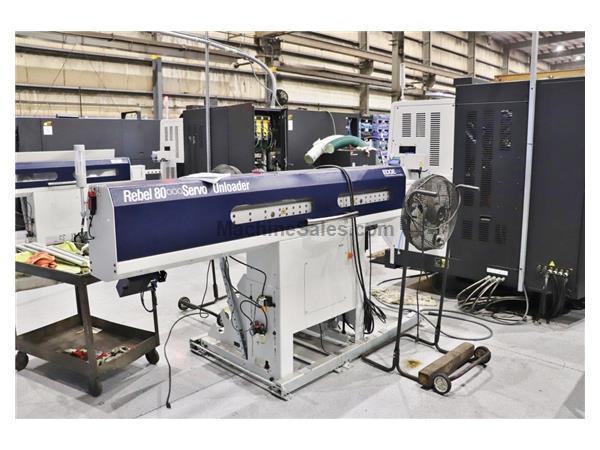

2020 EDGE TECHNOLOGIES REBEL 80 SERVO UNLOADER |
|
| Stock Code: |
496720 |
| Price: | $RFQ |
| Subcategory: | Bar Feeds |
| Maximum bar diameter: | 3.15" |
| Maximum bar length: | 3' |
| Year of Manufacture: |
2020 |
| Manufacturer: |
Edge-Technologies |
| Model: |
REBEL 80 SERVO |
| Condition: | Used |
CENTER LINE HEIGHT.......... 38" - 53.1"
BAR DIAMETER CAPACITY....... 0.315" - 3.150"
BAR LENGTH CAPACITY......... 6" - 36"
RAPID RETURN RATE........... 4 FPS
UNLOAD TIME................. 5-20 SECONDS
OPERATING VOLTAGE........... 230V (60 HZ) - 3 PH
X-AXIS TRACK TRAVEL......... 29.9"
Z-AXIS TRACK TRAVEL......... 29.9"
EQUIPPED WITH:
RIGHT SPINDLE LINER - EXTENDED TYPE - 2.380" DIAMETER
X-AXIS AXIAL SHIFT
(1) PUSHER LENGTH FOR PART VARIANCE WITH RUBBER ID GRIPPER
EXTENDED V-TRAY TO REACH BACK OF RIGHT-SPINDLE
COOLANT PAN IN V-TRAY AREA FOR EXCESSIVE COOLANT
AIR BLOW TO REDUCE COOLANT AND CHIPS IN FINISHED PART
LADDER MODIFICATION & SECONDARY BARFEED INTERFACE & E-STOP CIRCUIT
ORIGINAL COST OF ABOVE EQUIPPED SYSTEM WHEN INSTALLED NEW IN JANUARY 2020: $53,000
UNIT IS AVAILABLE IMMEDIATELY
This machine is listed for sale by Clark Machinery Sales
located in Hunt Valley, MD, Maryland
