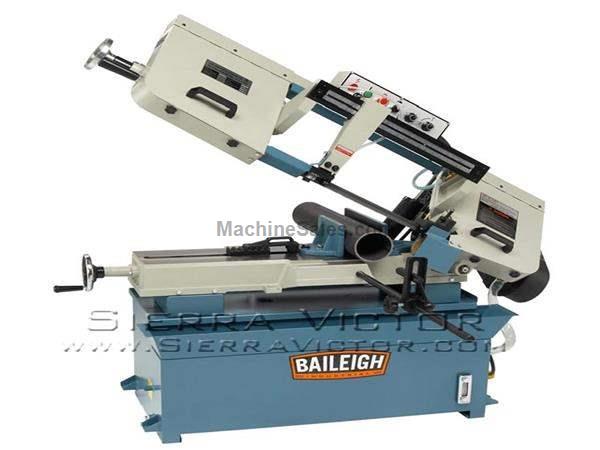

BAILEIGH Horizontal Band Saw BS-916M
Bandsaws Horizontal - Metal
CALL FOR BEST PRICING!
Based on our BS-300M, the Baileigh BS-916M metal cutting band saw has a compact footprint for small shops. This saw’s cast iron head and fully-welded steel base reduce vibration and ensure accuracy.
1.5 hp motor is powered by 220-volt single-phase power.
8.75” round capacity at 90°.
Vise miters up to 45°.
Accepts standard 1” blades.
4 cutting speeds: 82, 132, 170, and 235 fpm.
Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty.
You can control the hydraulic descent through an easy-to-access panel located on top of the bow.
Automatically shuts off at the end of the cut for safety and efficiency.
Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life.
Covered by a 1-year parts warranty.
Capacity Round (90 / 45deg): 8.85” / 6.5”
Capacity Square (90 / 45deg): 8.85” / 6.5”
Capacity Rectangular (90deg): 8.85" x 13.5" x 8.85" x 6.5"
Blade Size (H/W/L): 1” / .035” / 119.48”
Blade speed (fpm): 82/132/170/235
Blade Guide: Roller
Miter Angle: 0 – 45 deg
Miter Adjustment: Vice
Table Height: 35”
Descent Control: Hydraulic
Motor: 1.5 hp
Power Requirement: 220v / 1 phase
Dimensions (L/W/H): 68” / 30” / 43”
Weight: 700 lbs
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
