Machine Tools > Saws > Bandsaws Horizontal - Dual Column - Metal    < Back

Dual Column Band Saw model W-10 - $RFQ

Item Number: #00035068

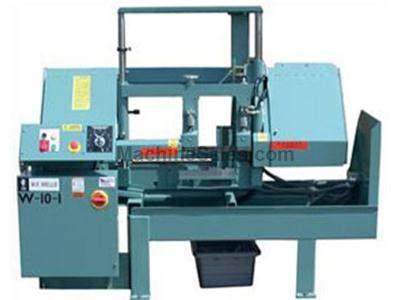

Dual Column Band Saw model W-10

Dual Column Band Saw model W-10
Price: $RFQ

Bandsaws Horizontal - Dual Column - Metal

Manufacturer:  Wells
Model:  W-10
Condition: New

Capacity at 90°: Rectangular 17" wide x 10" high
Round 10" Diameter
Piece Part Weight Capacity: 5000 Lbs
Blade Speed Range: 60-425 SFPM
Blade Size: 1" x 11'11"
Bandwheel Size: 14½"
Sawing Force: 30-120 Lbs
Blade Drive: 5 HP, 3 phase
Hydraulic Drive: 1/3 HP
Work Height: 26"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 1400 Lbs

* Made in USA by WF Wells
* Semi-Automatic
* 1" Bi-Metal Blade
* Carbide Guide Blocks
* Manual Vise Operation
* Manually Controlled Blade Tension
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect
* Low Voltage Protection
* Overload Protection
* Automatic End-Of-Cut Shut-Off
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

Hydraulic Vise & Blade Tension (option W10-2).
Automatic Length Stop Assembly
Discharge Worktable, 20"W x 48"L with Stock Stop
Miter Vise, 45°
Manual Air Vise
Work Light, Wired In
Blade Break/Stall Switch
Stock Stand, 6" OR 12" Wide (Heavy Duty)
High Speed AC Drive (400-3000 SFPM)
Console Controlled Blade Speed (AC Drive)
Free Standing Roller Stock Conveyors
