Hofman Balancing Machine Model PCH 25.1 |
|
| Stock Code: |
18372MS |
| Price: | $RFQ |
| Subcategory: | Balancers |
| Capacity: | 17000Lb |
| Length: | 106" |
| Year of Manufacture: |
2007 |
| Manufacturer: |
Hofmann |
| Model: |
25.1 |
| Condition: | Used |

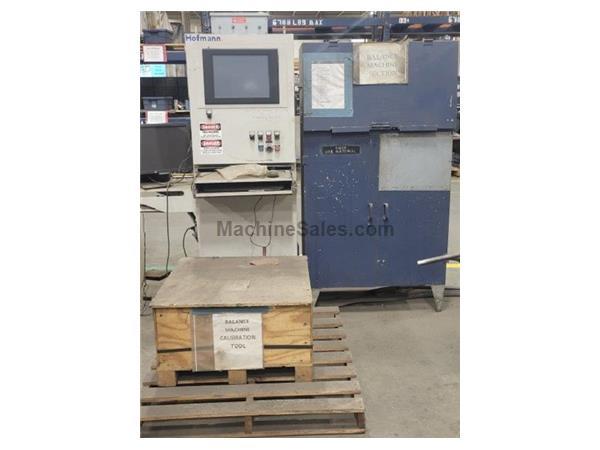

Hofmann Balancing Machine
S/N: 20134052, Mfg: 2007, Stock No: 18372
Model: PCH-25.1
Maximum Overload Weight of Rotor (Symmetrical): 17,000 Lbs.
Maximum Normal Operating Weight of Rotor: 15,000 Lbs.
Maximum Normal Weight per Pedestal: 7,500 Lbs.
Minimum Weight of Rotor: 50 Lbs.
Maximum Diameter of Rotor Over Bed: 69"
Maximum Diameter of Rotor Over Belt Tensioner: 50"
Maximum Length of Rotor Between Centers of Bearings: 106"
Minimum Length of Rotor Between Centers of Bearings: 15"
Balancing Speeds, Infinitely Variable: Dependant on Drive
Drive Pulley Diameter: Large 6.0"
Small 3.5"
Bearing Journal Diameters: 1.25" - 13.4"
(including Optional Roller Bearing Sets)
Accuracy (displacement of C.G.): +/- 10 Micro Inch
Sensitivity: +/- 0.25 gmm/kg
Motor: 20 HP 460V, 3Ph, 60 Hz
This machine is listed for sale by Pearl Equipment Co.
located in Nashville, Tennessee
