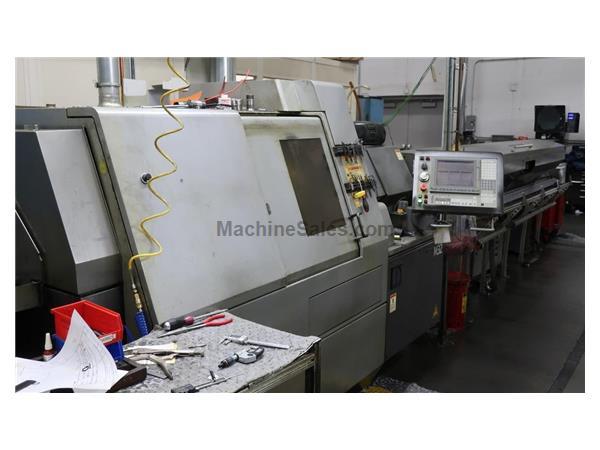

Citizen M32 III, 32mm, 8000 RPM, 8-Axis, Mits Ctrl, HP Coolant, CAV Mag. Barfeed, CNC Swiss Lathe, New 2006 |
|
| Stock Code: |
56132 |
| Price: | $RFQ |
| Subcategory: | Automatic Screw Machines - Swiss Type CNC |
| Year of Manufacture: |
2006 |
| Manufacturer: |
Citizen |
| Model: |
M32 III |
| Condition: | Used |
CONTROL
Mitsubishi M Series Control
Max. machining length (L)
320mm/1 chucking
Spindle through-hole diameter
36mm diam.
Main Spindle Speed:
8000 rpm
Spindle speed of the gang rotary tool
5000 rpm
Spindle speed of the turret rotary tool
5000 rpm
Sub Spindle Speed (RPM)
7000 rpm
Max. chuck dia of the back spindle
32mm diam
Number of tools to be mounted
31+a
Gang tool post
5
Gang rotary tool
4
Number of turret station
10
Back tool post
3
Tool size
SEE BELOW
Tool (gang tool post)
16mm square
Sleeve
24.5mm diam
Chuck and bushing
SEE BELOW
Main spindle collet chuck
F37
Back spindle collet chuck
F37
Guide bushing
N229
Rapid feed rate
SEE BELOW
All axes (except X2 & Y2)
32 m/min
X2 axis
18 m/min
Y2 axis
8 m/min
Y3 axis
32m/min
Spindle drive
3.8/7.5 kW
Sub spindle drive
1.7/3.7 kW
Gang tool post rotary tool drive
1.0 kW
Turret rotary tool drive
0.75/1.5 kW
Coolant oil
0.4 kW
Lubricating oil
0.003 kW
Rated power consumption
14.5 kVA
Full-load current
53A
Main braker capacity
75A
Dimensions
120" x 56" x 75"
Weight
7825 pounds
Mitsubishi M Series Control
4 - Live Turret Tool holders (2) Axial, (2) Radial2 - Turret Holder - Turning & Drilling4 - Live Gang HoldersMain Spindle Indexing -
Normal
0
false
false
false
EN-US
X-NONE
X-NONE
DefSemiHidden="false" DefQFormat="false" DefPriority="99"
LatentStyleCount="375">
UnhideWhenUsed="true" QFormat="true" Name="heading 2">
UnhideWhenUsed="true" QFormat="true" Name="heading 3">
UnhideWhenUsed="true" QFormat="true" Name="heading 4">
UnhideWhenUsed="true" QFormat="true" Name="heading 5">
UnhideWhenUsed="true" QFormat="true" Name="heading 6">
UnhideWhenUsed="true" QFormat="true" Name="heading 7">
UnhideWhenUsed="true" QFormat="true" Name="heading 8">
UnhideWhenUsed="true" QFormat="true" Name="heading 9">
Name="index 1">
Name="index 2">
Name="index 3">
Name="index 4">
Name="index 5">
Name="index 6">
Name="index 7">
Name="index 8">
Name="index 9">
UnhideWhenUsed="true" Name="toc 1">
UnhideWhenUsed="true" Name="toc 2">
UnhideWhenUsed="true" Name="toc 3">
UnhideWhenUsed="true" Name="toc 4">
UnhideWhenUsed="true" Name="toc 5">
UnhideWhenUsed="true" Name="toc 6">
UnhideWhenUsed="true" Name="toc 7">
UnhideWhenUsed="true" Name="toc 8">
UnhideWhenUsed="true" Name="toc 9">
Name="Normal Indent">
Name="footnote text">
Name="annotation text">
Name="header">
Name="footer">
Name="index heading">
UnhideWhenUsed="true" QFormat="true" Name="caption">
Name="table of figures">
Name="envelope address">
Name="envelope return">
Name="footnote reference">
Name="annotation reference">
This machine is listed for sale by Orca Machine Tools, Inc.
located in Fridley, Minnesota
|
