4" x 4" x 1/2" Davi Promau Angle Bending Roll with tooling - $47,500

Item Number: #00167493
4&quot; x 4&quot; x 1/2&quot; Davi Promau Angle Bending Roll with tooling

4" x 4" x 1/2" Davi Promau Angle Bending Roll with tooling
Stock Code:  13828
Price: $47,500

Angle Bending Rolls

Year of Manufacture:  2003
Manufacturer:  Davi-Promau
Model:  MCP3210
Condition: Used

We are pleased to offer for your consideration:

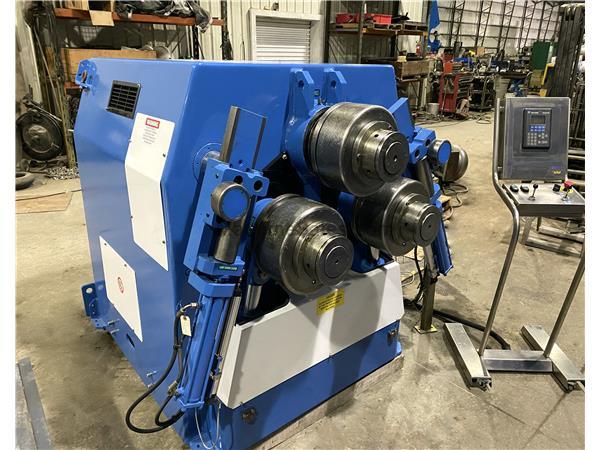

(1) 4" x 4" x 1/2" Davi Promau Horizontal & Vertical Angle Bending Roll

Stock Number: 13828
List Price: $47,500

Manufacturer: Davi Promau
Model Number: MCP3210
Serial Number: 20320008
Year: 2003

Angles, leg out: 4" x 4" x 1/2" Ø 45"
Angles,leg in: 4" x 4" x 3/8" Ø 45"
Channels, leg out: C 7" x 14.75# Ø 30"
Channels, leg in: C 7" x 14.75# Ø 35"
Flats,onedge: 4" x 1" Ø28" Ø28"
Flats, on flat: 8" x 1" 3/8 Ø 24"
Rounds: 2-5/16" Ø 36"
Squares: 2" 9/16 x 1 Ø 27"
Tube: 5" Schedule 10 Ø 118"
Pipe: 4" Schedule 40 Ø 45"
RPM: Infinitely Variable to within manufacturers specifications
Shaft diameter: 4-5/16" (10.954cm)
Main drive motor: 18 HP (4 KW) 240/480 volts
Volts: 240
Phase: 3
Approximate dimensions, vertical position: 72" LR x 69" FB x 60" H
Operator Control Station : 19" FB x 20" LR x 55" H
Approximate weight: 5,500 lbs
Pallet of tooling: 1,500 lbs

Currently positioned for vertical operation; Can also operate in horizontal position; Hydraulic guide rolls (up-down); Hydraulic tilting/angular guide rolls (toward-away); Bottom Rolls Hydraulic Power Rise and Fall Adjustment; 3-Axis Hydraulic Lateral Angle Guide Rolls (Side Rolls Rise/Fall and Swing In/Out); Roll Vari-Speed Control; Initial Roll adjusted by motor drive with electric brake; Leg In / Out Attachments; With Read Out; Allen-Bradley Panel View 300 Programable Controller (8 Function Keys, & Program Keys); Safety Power Shut Off trip wire; (4) sets of tooling
