BAILEIGH Roll Bender R-M20-220 - $RFQ

Item Number: #00138337

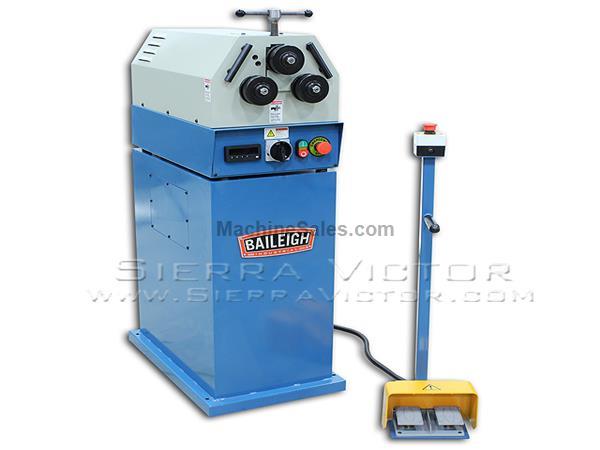

BAILEIGH Roll Bender R-M20-220

BAILEIGH Roll Bender R-M20-220
Stock Code:  R-M20-220
Price: $RFQ
Subcategory:

Angle Bending Rolls

Manufacturer:  Baileigh
Model:  R-M20-220
Condition: New

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.
Runs on 220-volt 3-phase power.
Maximum capacity of .5" schedule 40 pipe and 1" round tube.
Adjustable lateral guides let you bend to just about any coil width imaginable.
Convenient foot pedals control forward and reverse roll direction.
Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
Emergency stop protects your safety, as well as the machine.
Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.
Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.

SPECIFICATIONS:
Driven Rolls: 2
Roll Adjustment: Manual
Pipe Capacity: Size: .5” (sch.40) / Min. Dia.: 14”
Round Tube Capacity: Size: 1" (.0625") Min. Dia.: 16"
Square Tube Capacity: .75" (.0625") Min. Dia.: 12"
Solid Round Capacity: Size: .5" Min. Dia.: 5"
Flat Bar Easy Way: Size: 1.75" Min. Dia.: 12"
Flat Bar Hard Way: Size: 1" Min. Dia.: 8"
Angle Iron Capacity: Size: .75" (.125") Min. Dia.: 10"
Shaft Diameter: .78"
Shaft Center Distance Lower Rolls: 10.88"
Upper Roll Dia.: 3.38"
Lower Roll Dia.: 3.38"
Pinch: Single
Power: 220V, 3-Phase
*Optional Tooling: Some applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
Speeds: 14285
Shipping Dimensions (L/W/H): 60" x 44" x 68"
Shipping Weight: 420 lbs.

*All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
